Transfer Component Disassembling Procedure

1. Assemble the SSTs.

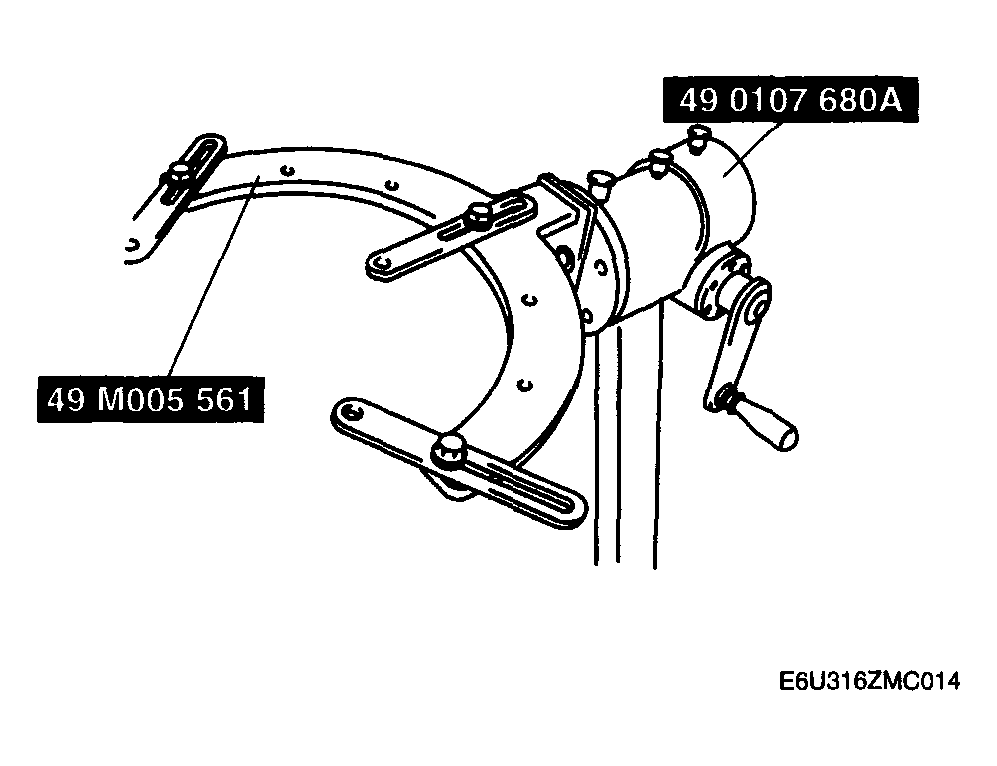

   Fig 1: Assembling SSTs

   Courtesy of MAZDA MOTORS CORP.
2. Install the transfer component to the SSTs  .
3. Remove the oil cooler.
4. Remove the drive gear case component.

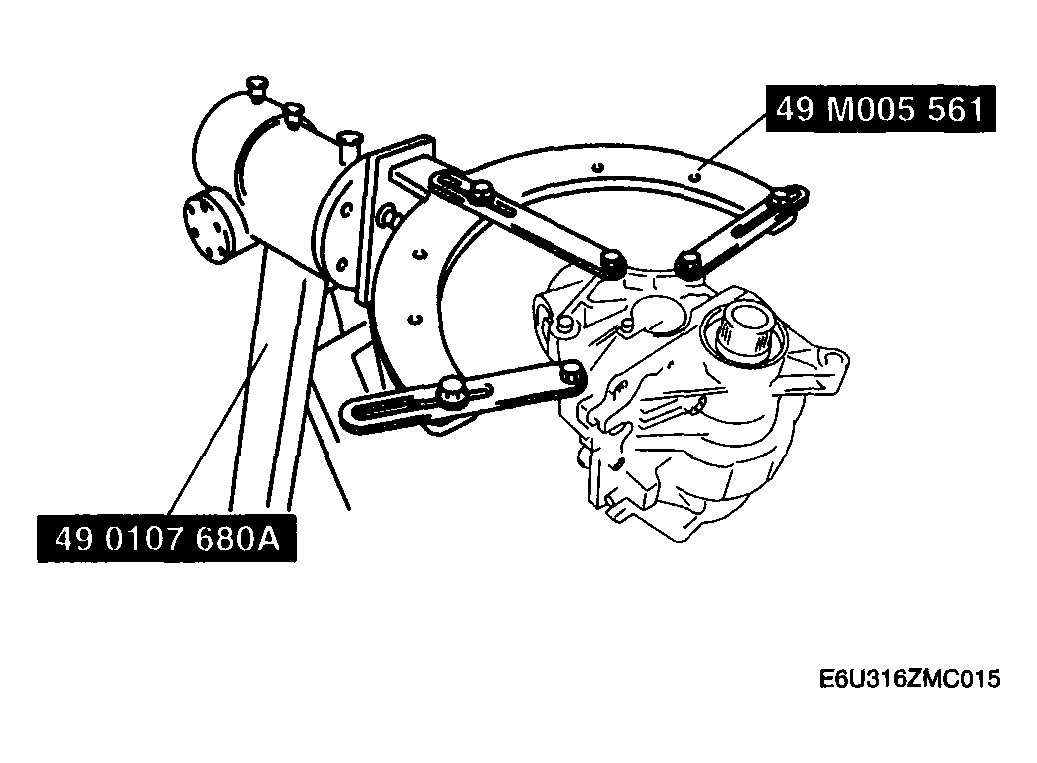

Fig 2: Installing Transfer Component To SSTs

Courtesy of MAZDA MOTORS CORP.
