Control System Diagram

California emission regulation applicable ATX model

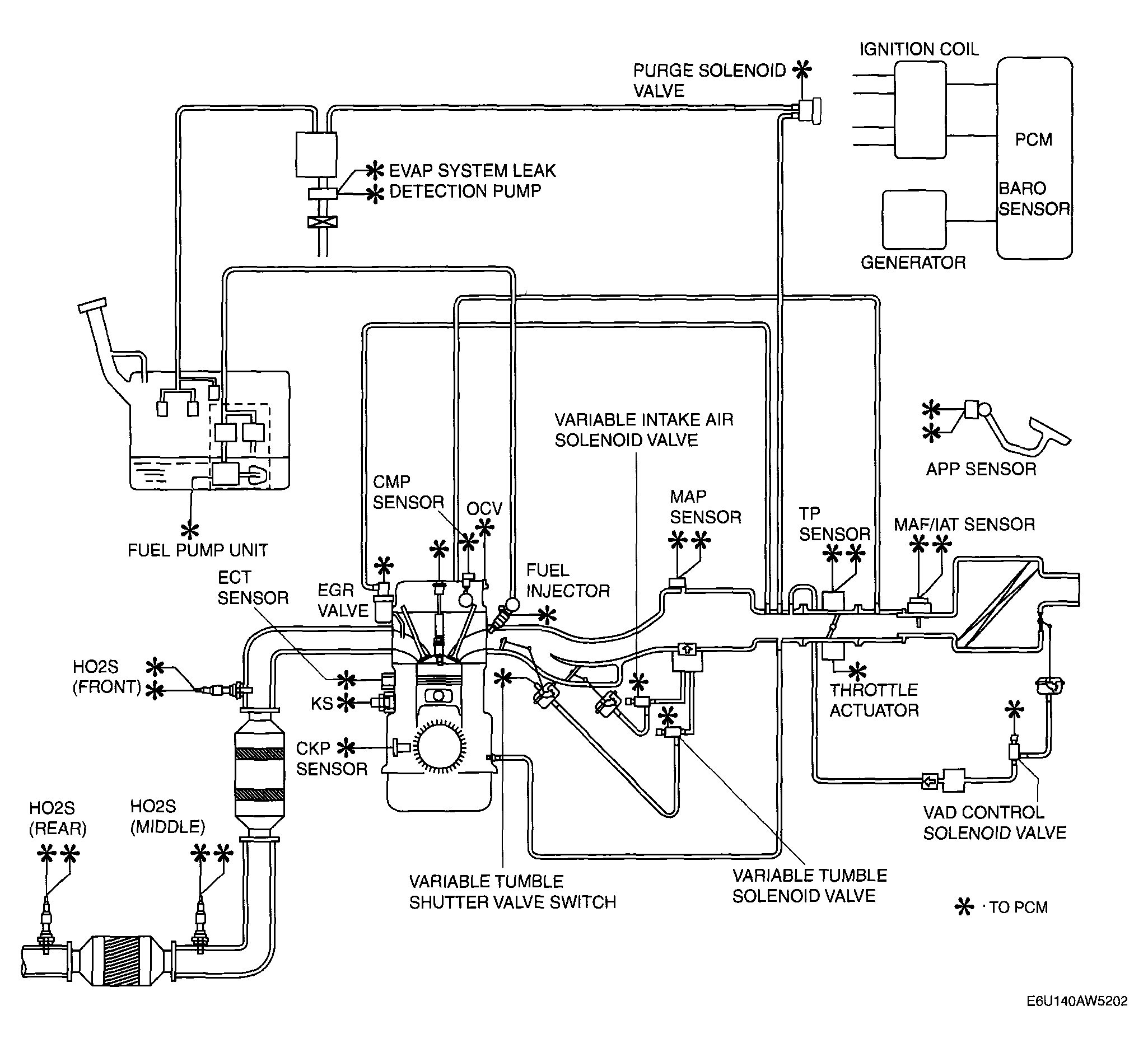

Fig 1: California Emission Regulation Applicable ATX Model - Control System Diagram [L3]

Courtesy of MAZDA MOTORS CORP.

Except for California emission regulation applicable ATX model

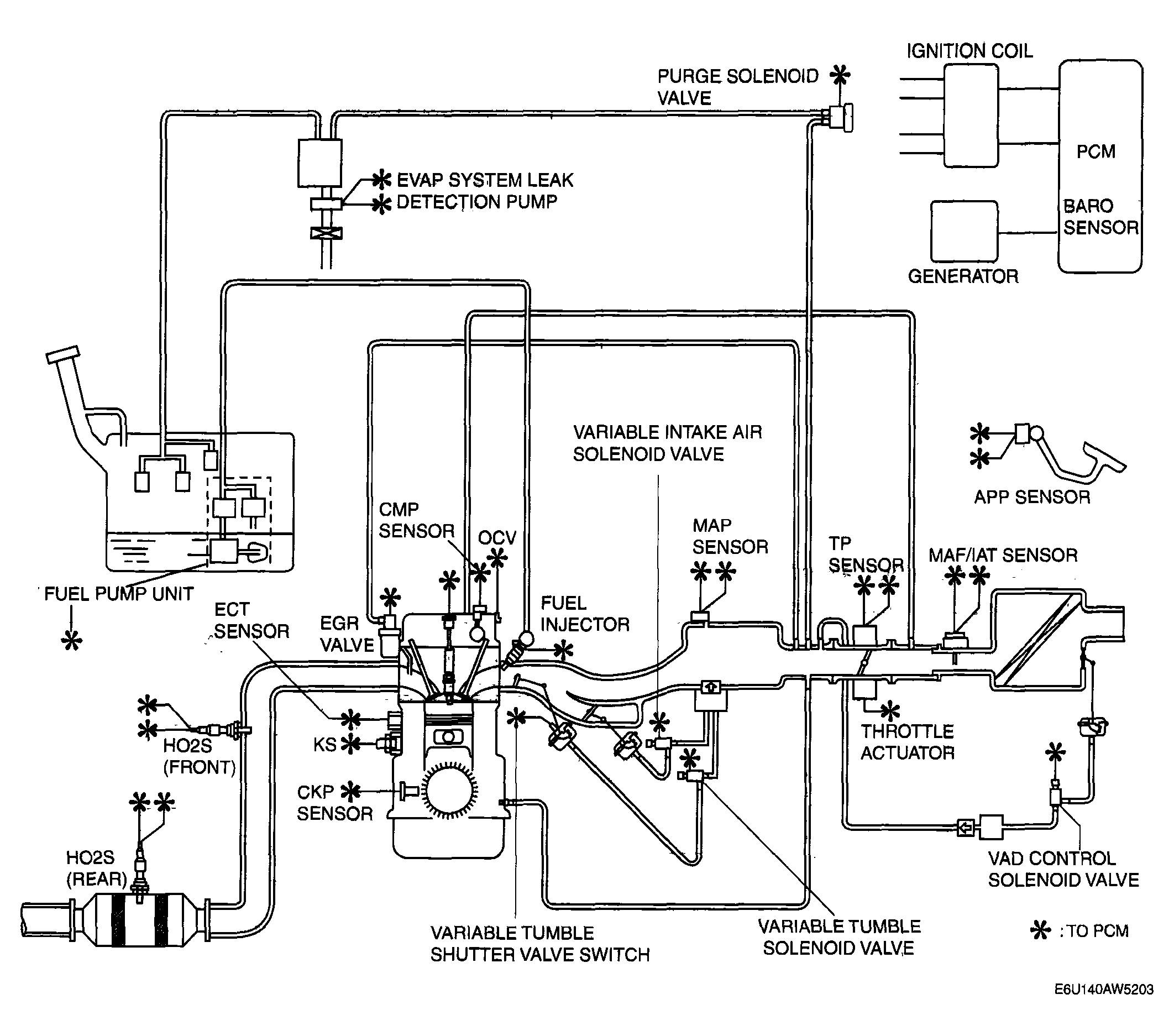

Fig 2: Except California Emission Regulation Applicable ATX Model - Control System Diagram [L3]

Courtesy of MAZDA MOTORS CORP.
