Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (L3)
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
CMP sensor signal
›
Vehicle condition
Vehicle condition
Idle after warm up (no load, P/S off, A/C off)

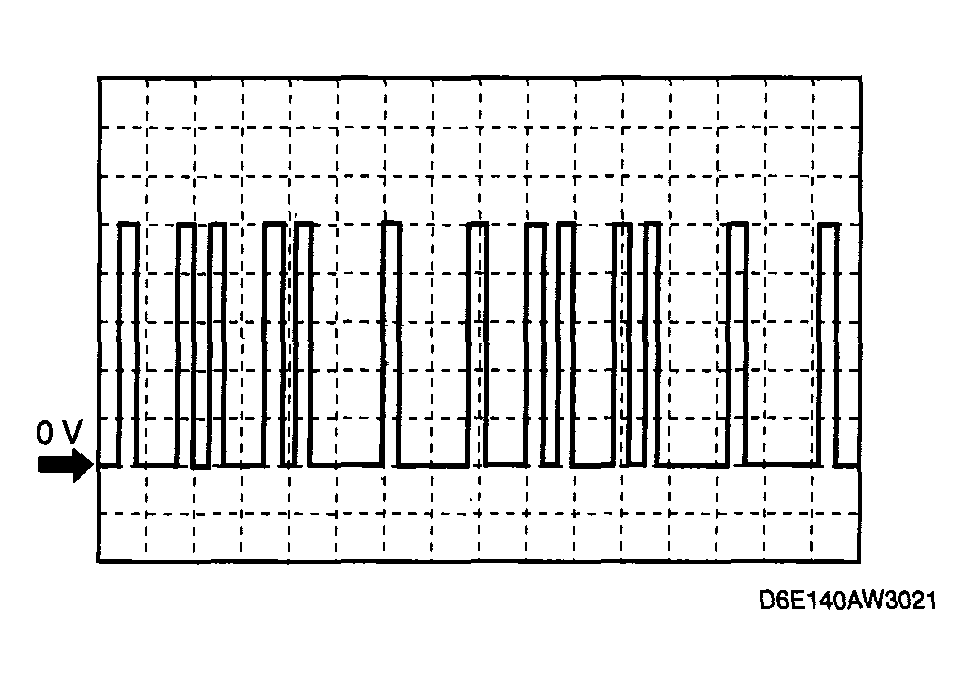

Fig 1: Identifying CMP Sensor Signal Waveform
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
