6 i, 4D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Symptom Troubleshooting [Engine Control System L3)
›
Quick Diagnostic Chart
Quick Diagnostic Chart

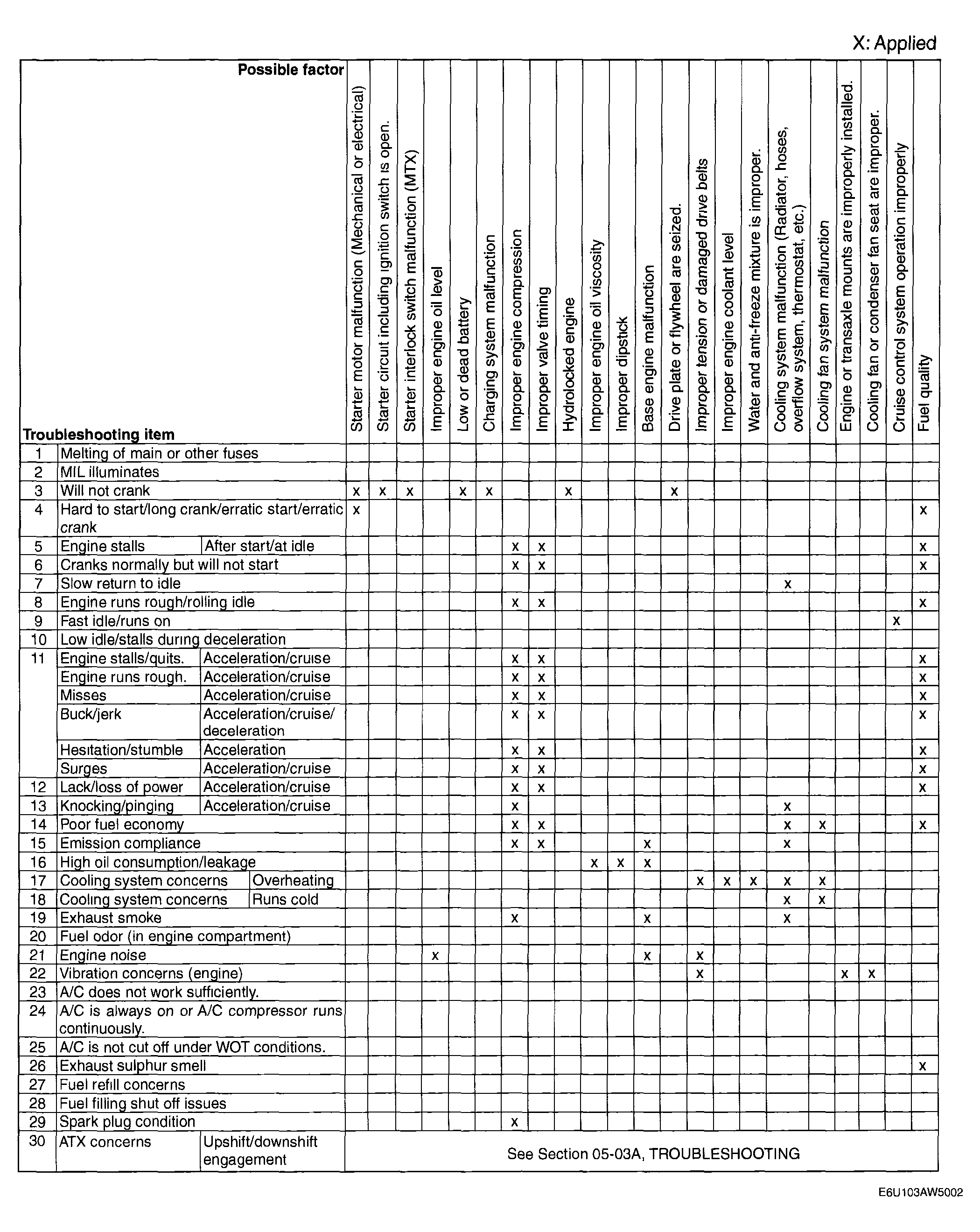

Fig 1: Quick Diagnostic Chart (L3) (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

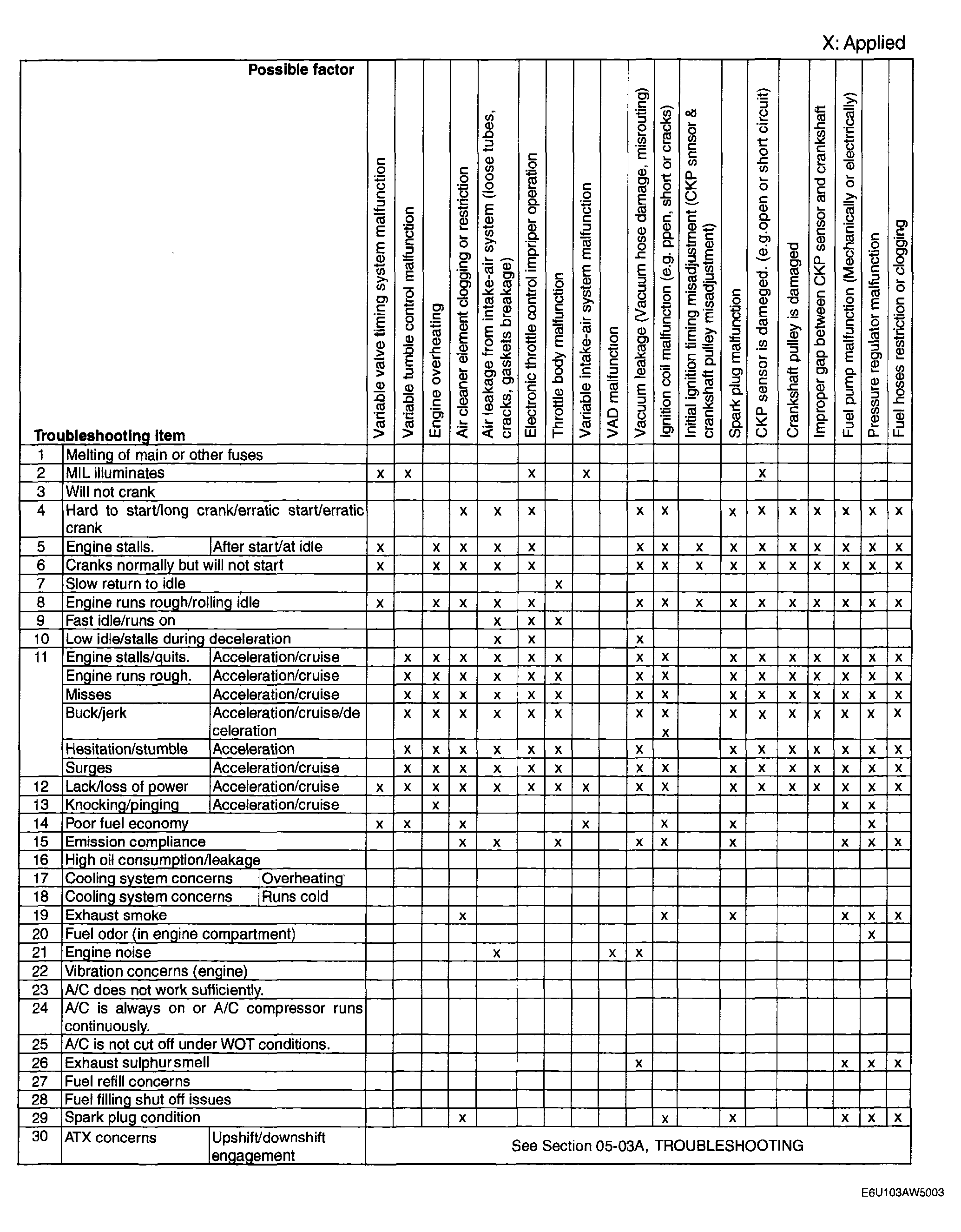

Fig 2: Quick Diagnostic Chart (L3) (2Of 4)
Courtesy of MAZDA MOTORS CORP.

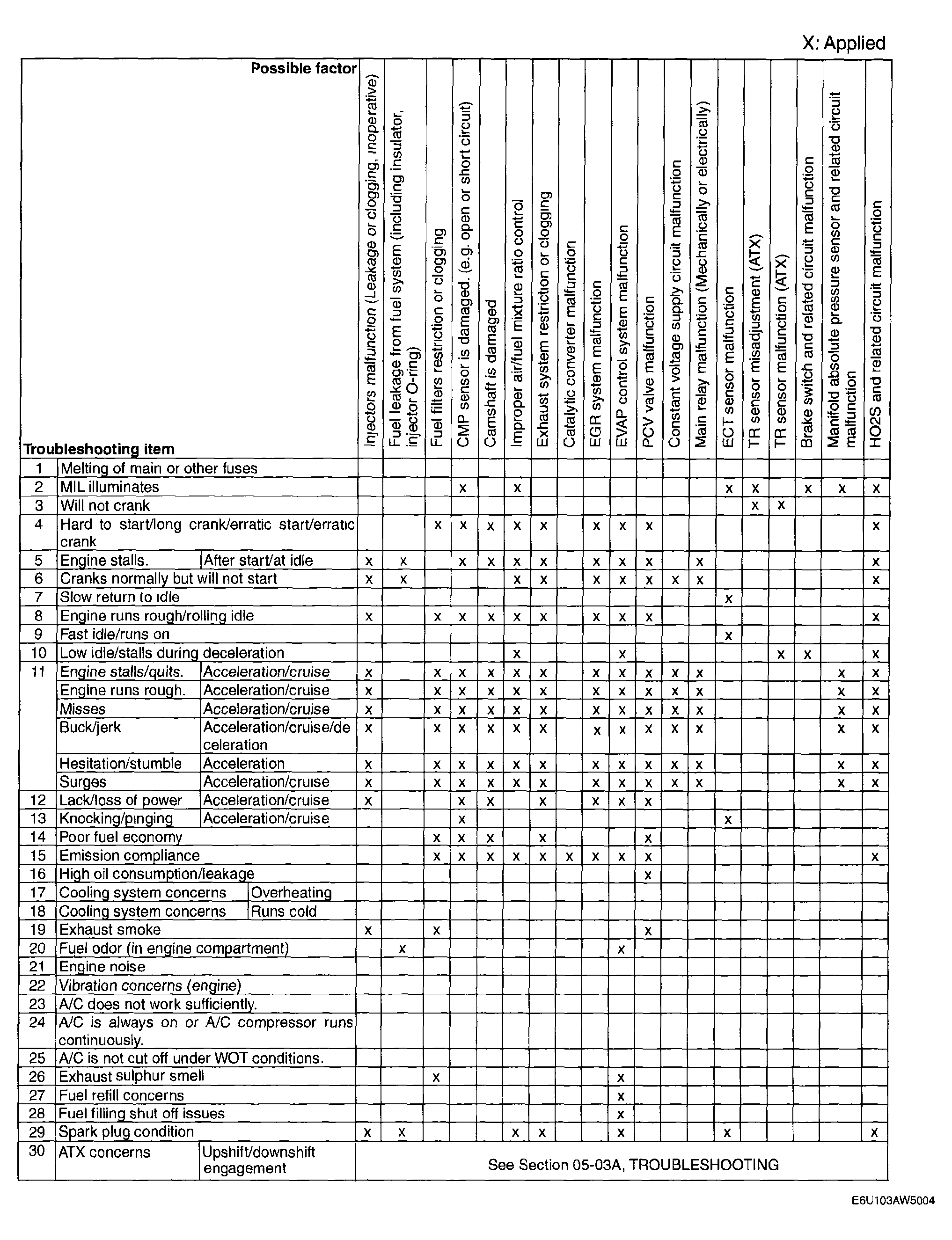

Fig 3: Quick Diagnostic Chart (L3) (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Quick Diagnostic Chart (L3) (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
