Power Door Lock System And Keyless Entry System Location Index [With Advanced Keyless System]

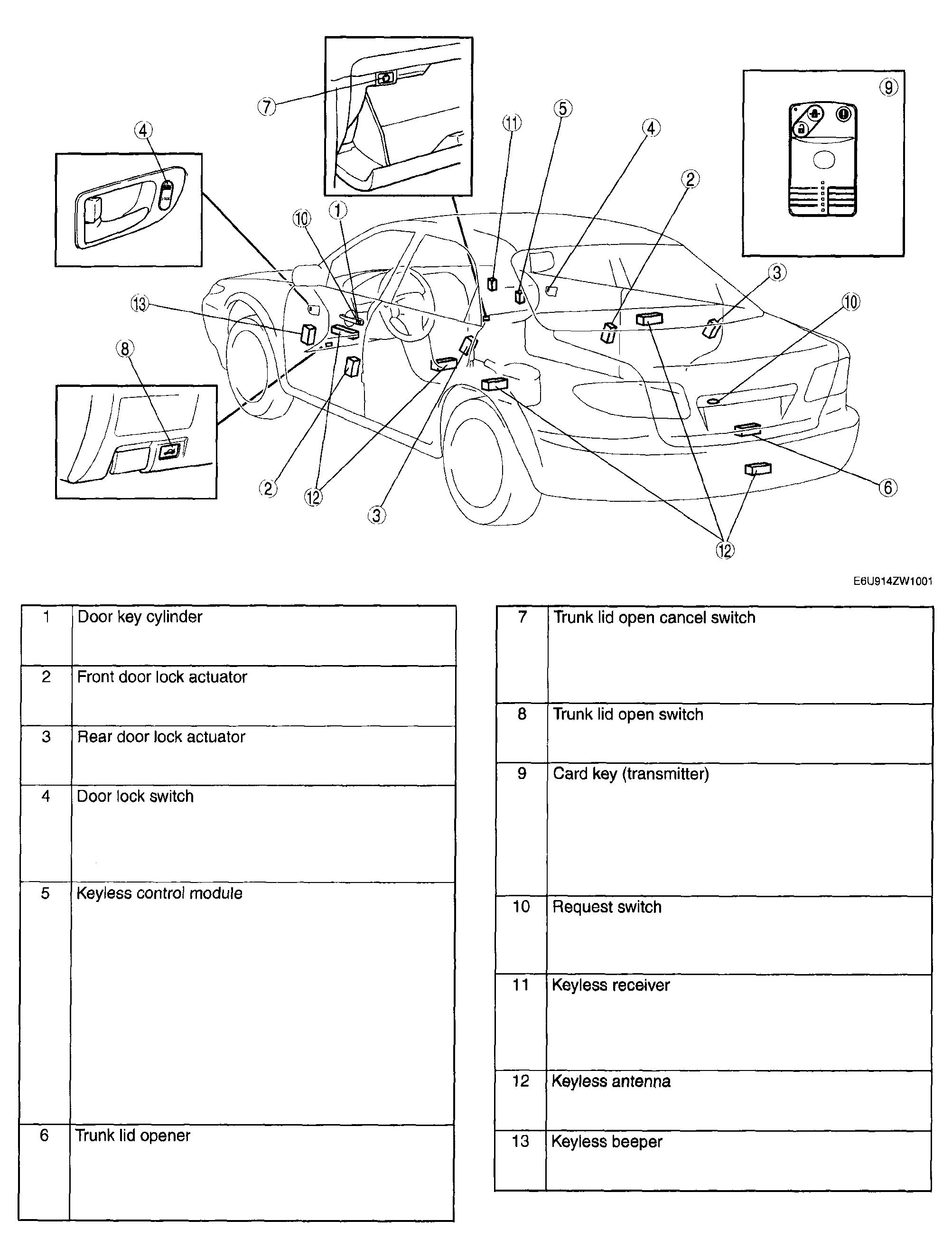

Fig 1: Identifying Power Door Lock System And Keyless Entry System Components [With Advanced Keyless System]
G04327305Courtesy of MAZDA MOTORS CORP.
