Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (AJ)
›
Control System Component Location Index
Control System Component Location Index

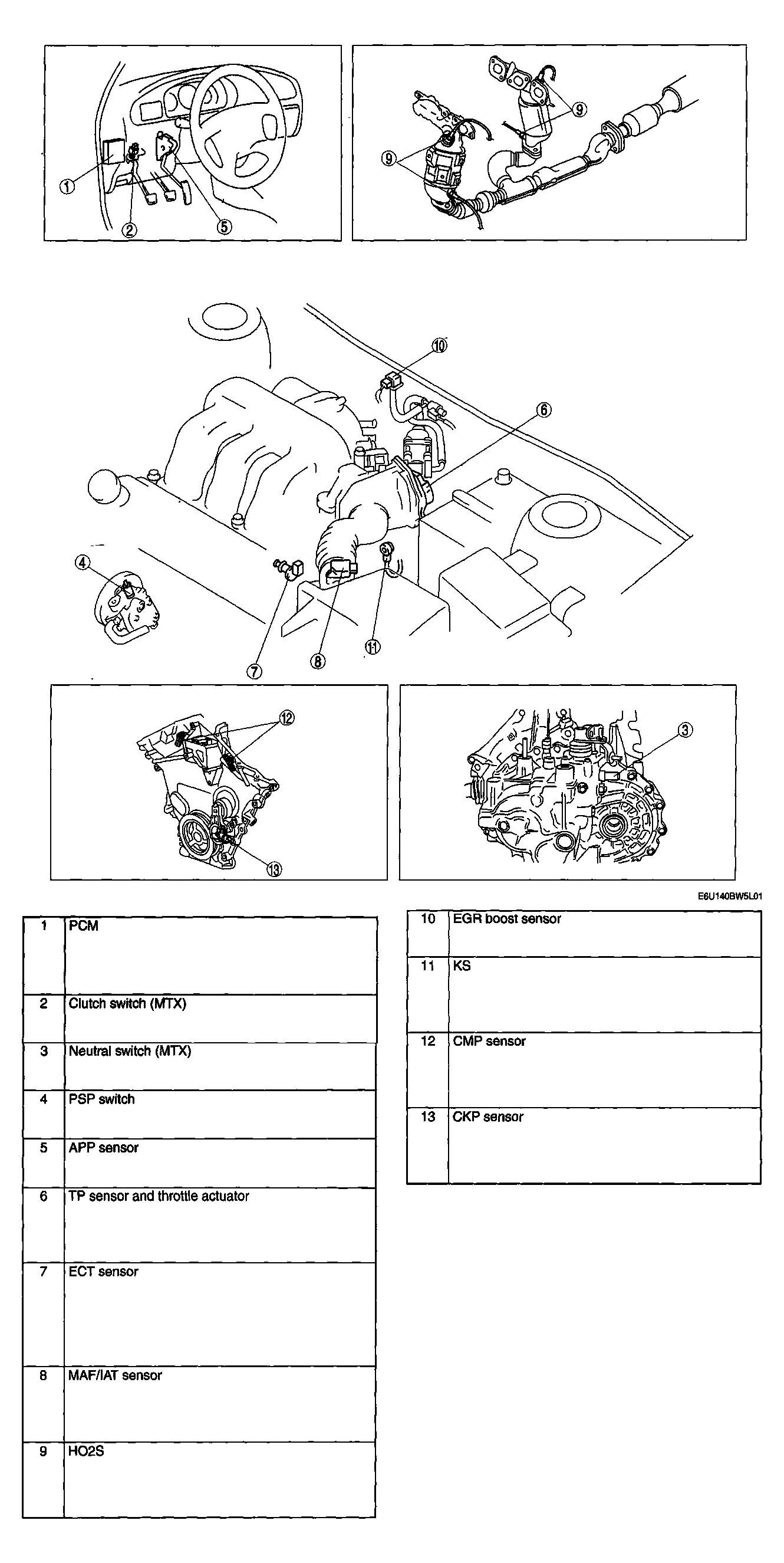

Fig 1: Identifying Control System Component Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
