On-Board Diagnostic [Engine Control System (AJ]
›
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

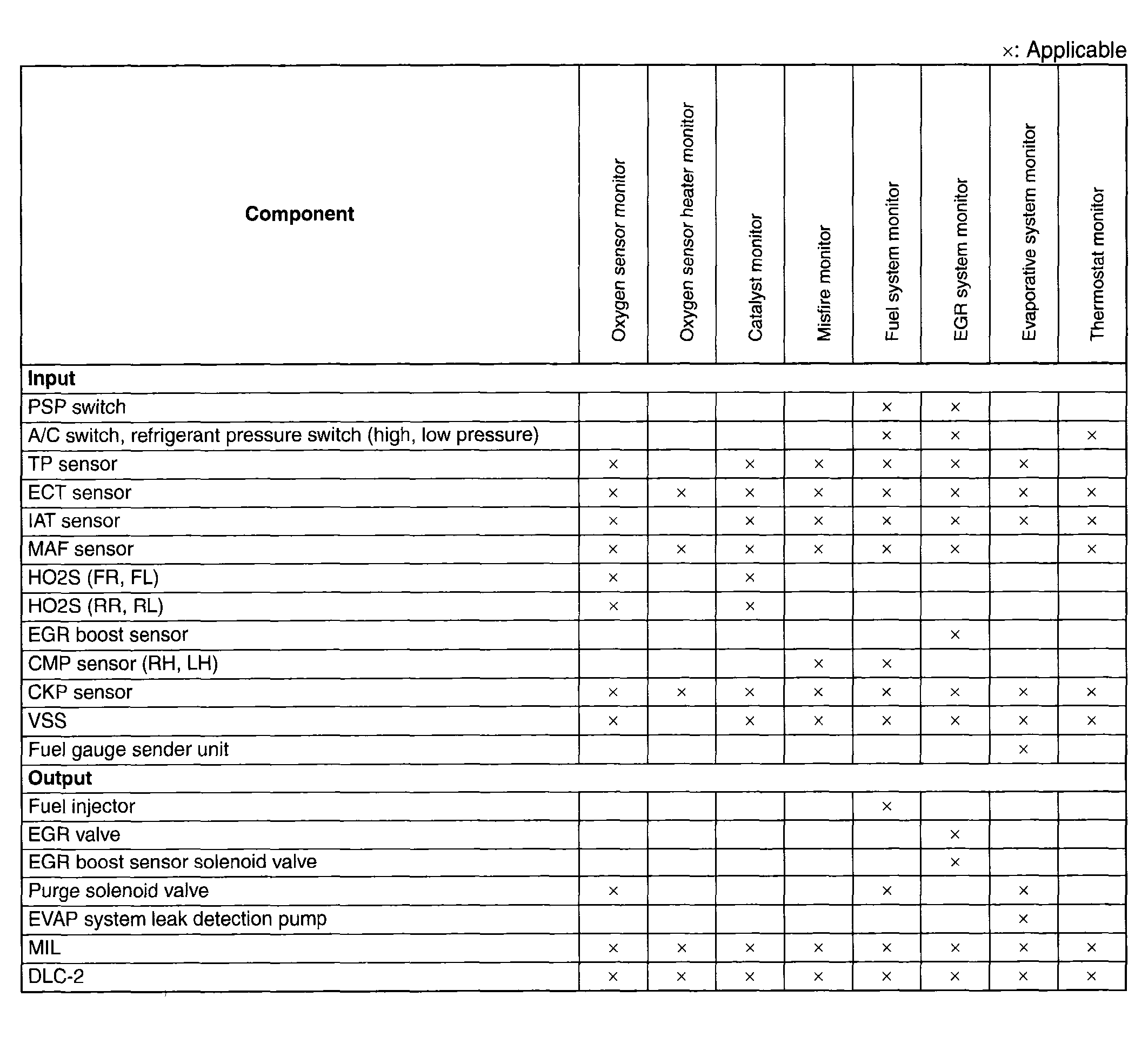

Fig 1: Monitoring System And Control System Device Relationship Chart (AJ)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
