Symptom Troubleshooting (Power Window System)
›
Power Window System Wiring Diagram
›
Power Window Subswitch
Power Window Subswitch

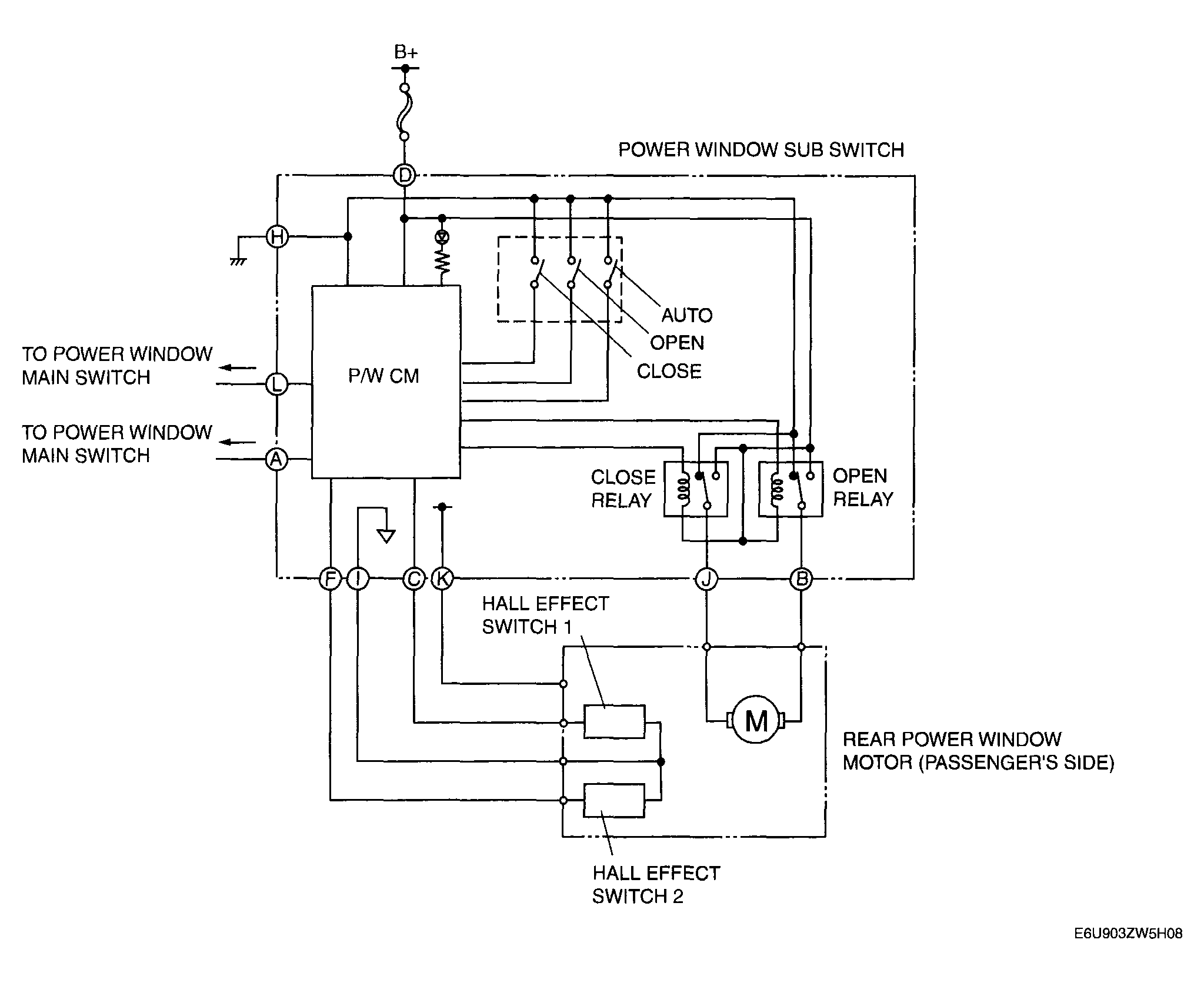

Fig 1: Power Window Subswitch - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
