Symptom Troubleshooting Wiring Diagram

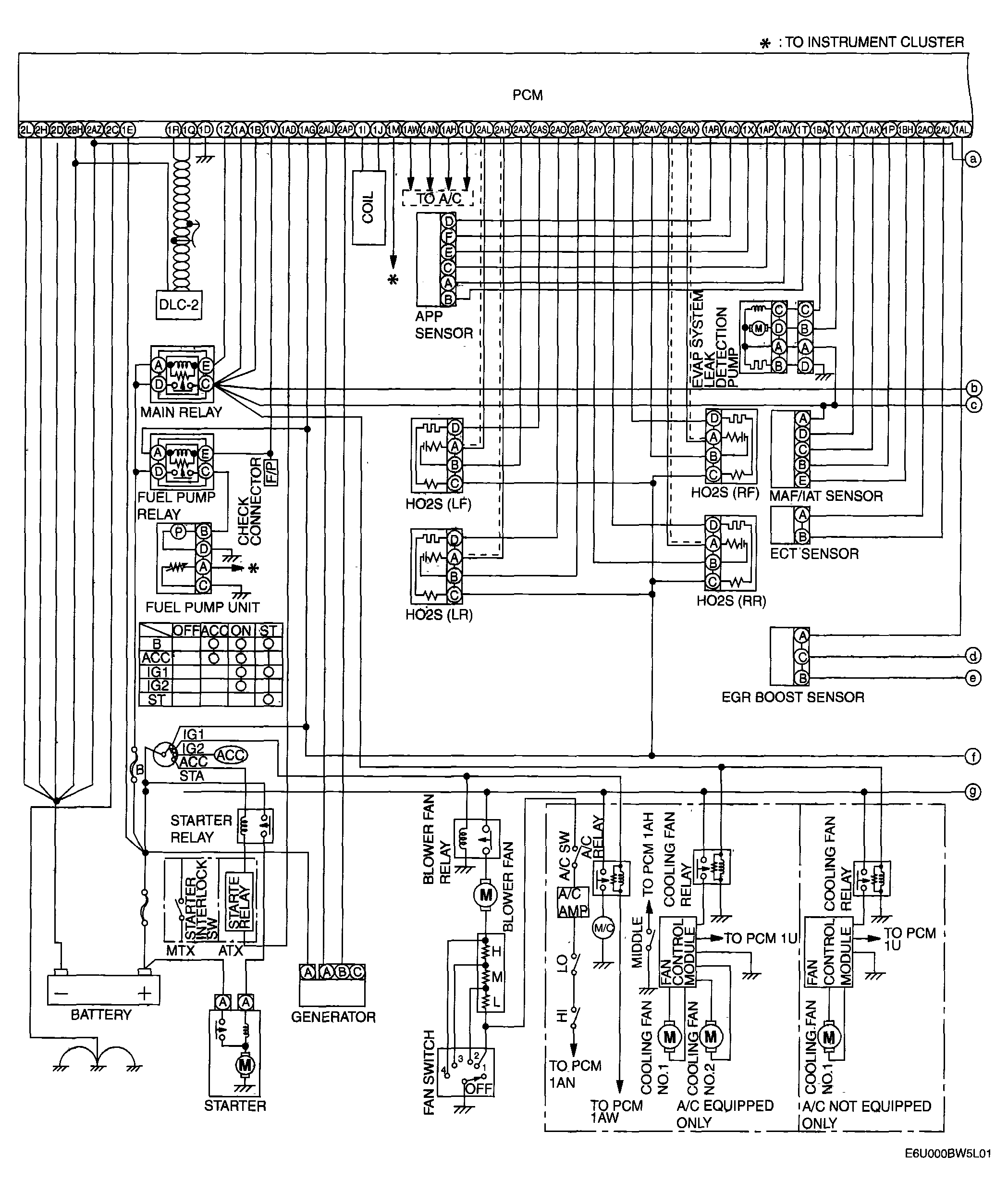

Fig 1: Symptom Troubleshooting Wiring Diagram [AJ] (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

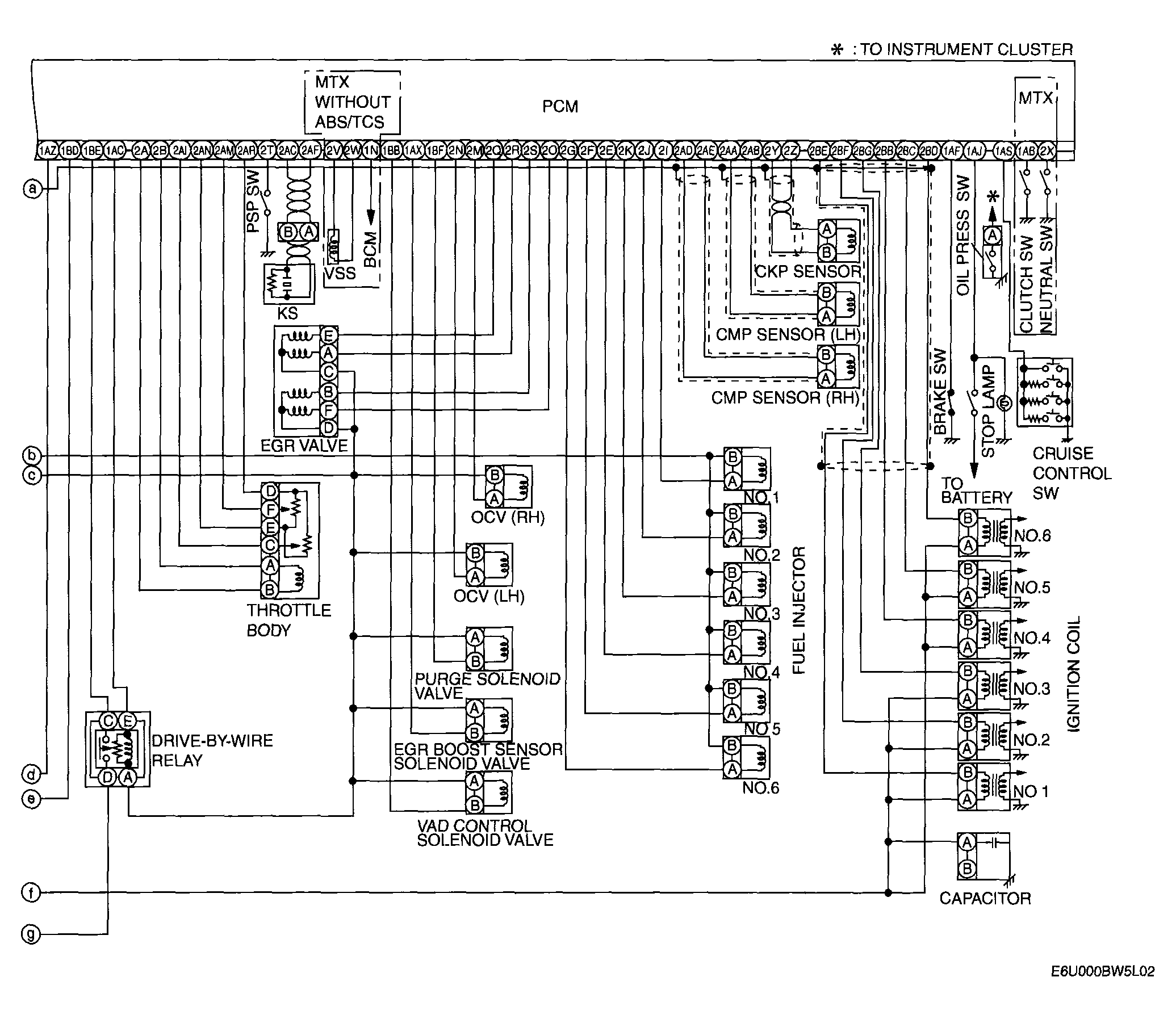

Fig 2: Symptom Troubleshooting Wiring Diagram [AJ] (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
