Floor Console: Notes

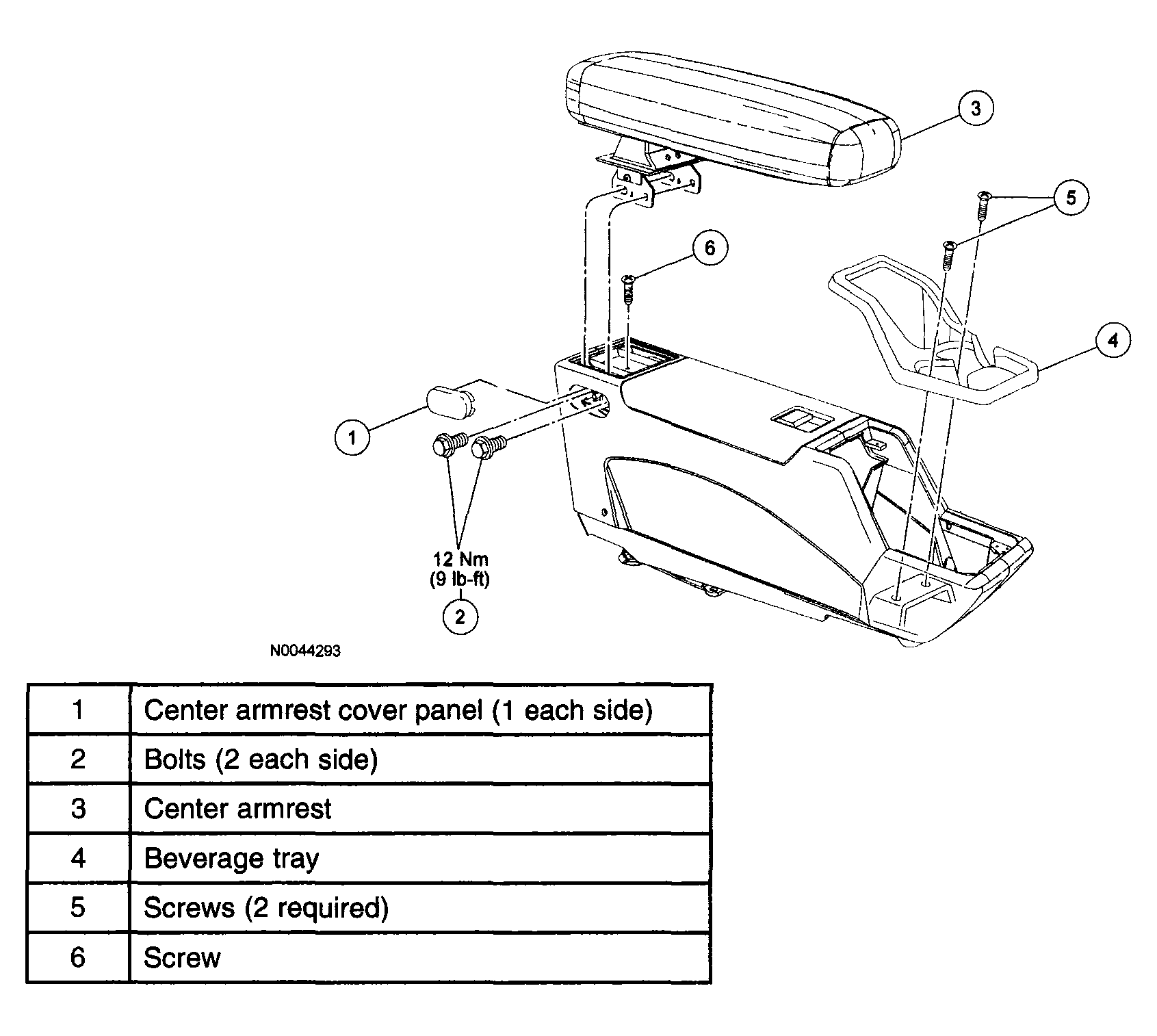

Fig 1: Removing/Installing Floor Console With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
