Climate Control Assembly Connector End View (C294C)
Climate Control Assembly Connector End View (C294C)

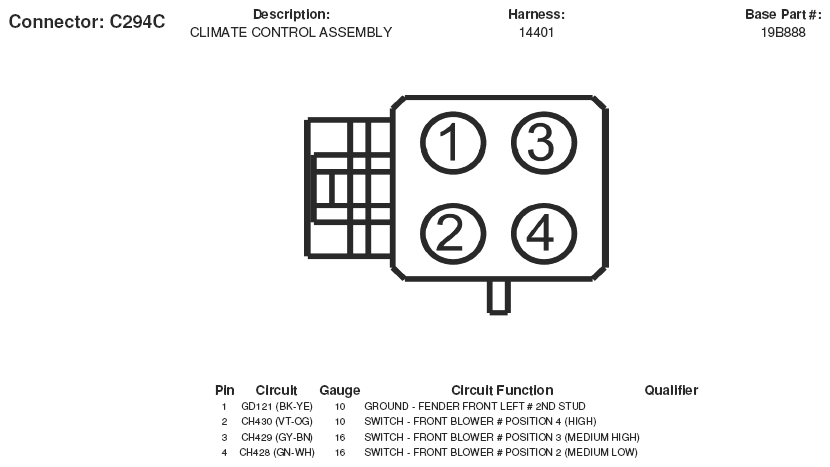

Fig 1: Climate Control Assembly Connector End View (C294C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
