Climate Control Assembly Connector End View (C294D)
Climate Control Assembly Connector End View (C294D)

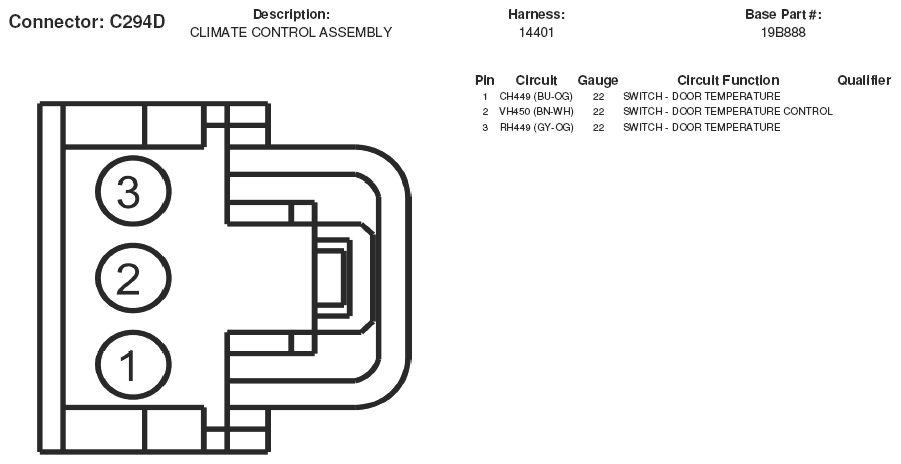

Fig 1: Climate Control Assembly Connector End View (C294D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
