Four Wheel Drive Control Module Connector End View (C281A)

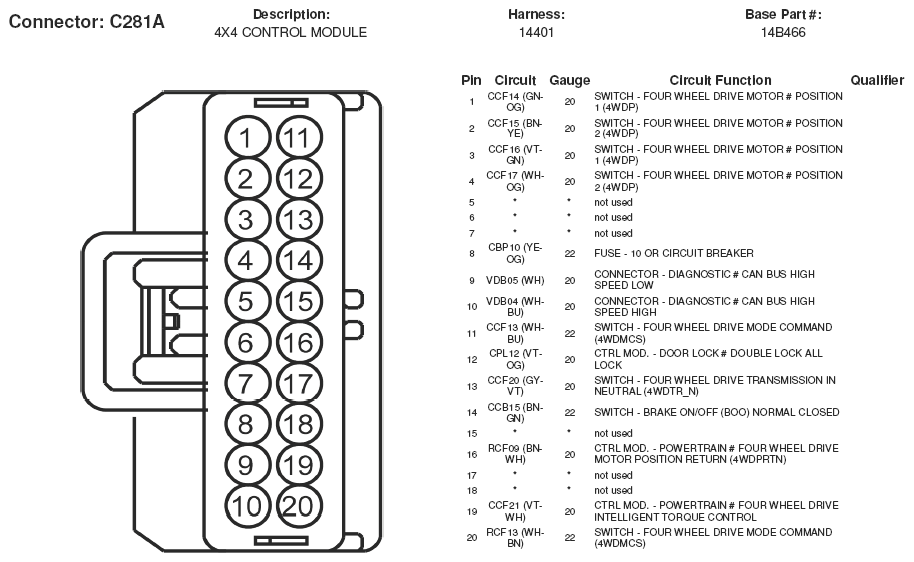

Fig 1: Four Wheel Drive Control Module Connector End View (C281A)
G05169206Courtesy of FORD MOTOR CO.
