Four Wheel Drive Control Module Connector End View (C281B)

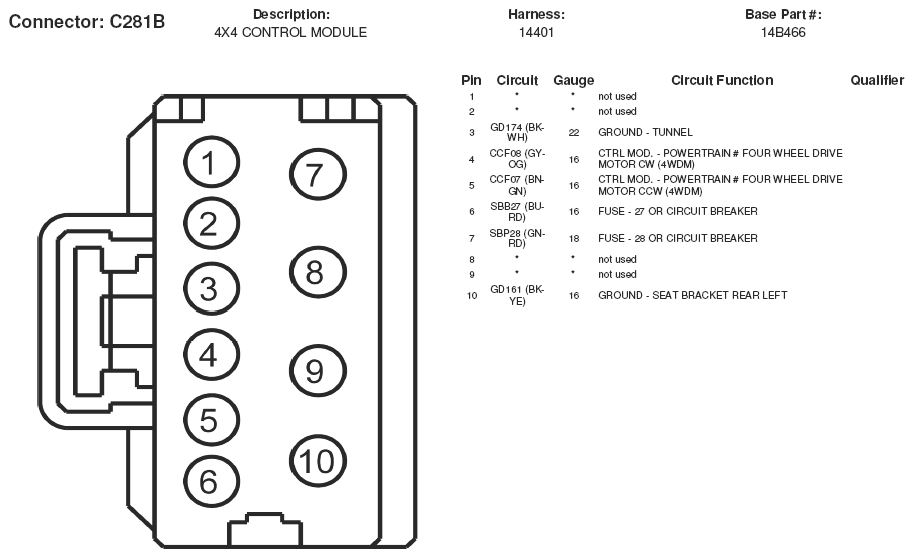

Fig 1: Four Wheel Drive Control Module Connector End View (C281B)
G05169207Courtesy of FORD MOTOR CO.
