Multifunction Switch Connector End View (C202A)
Multifunction Switch Connector End View (C202A)

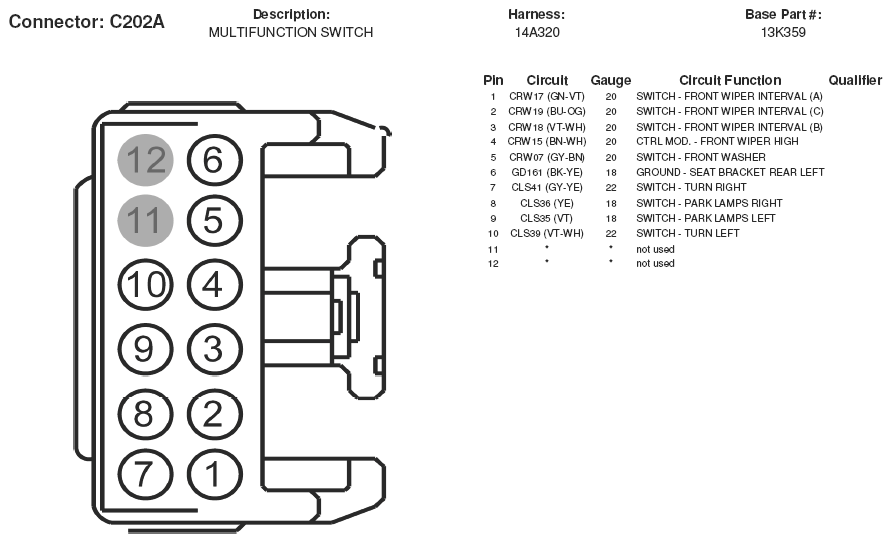

Fig 1: Multifunction Switch Connector End View (C202A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
