Multifunction Switch Connector End View (C202B)
Multifunction Switch Connector End View (C202B)

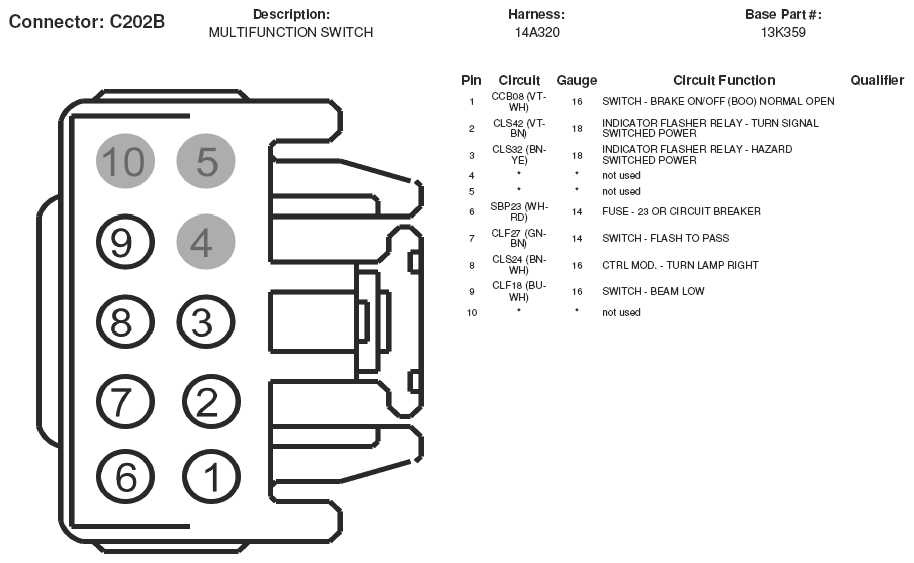

Fig 1: Multifunction Switch Connector End View (C202B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
