Speed Control Set/Resume Switch Connector End View (C2177)

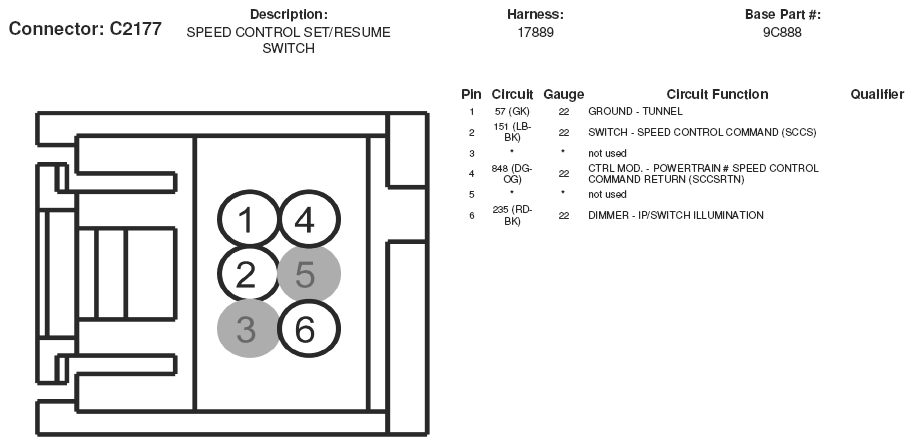

Fig 1: Speed Control Set/Resume Switch Connector End View (C2177)
G05169322Courtesy of FORD MOTOR CO.
