Home › Mazda › 2007 › B3000 Base, Automatic › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Generator Removal / Installation - 3.0L › Notes

Generator Removal / Installation - 3.0L: Notes

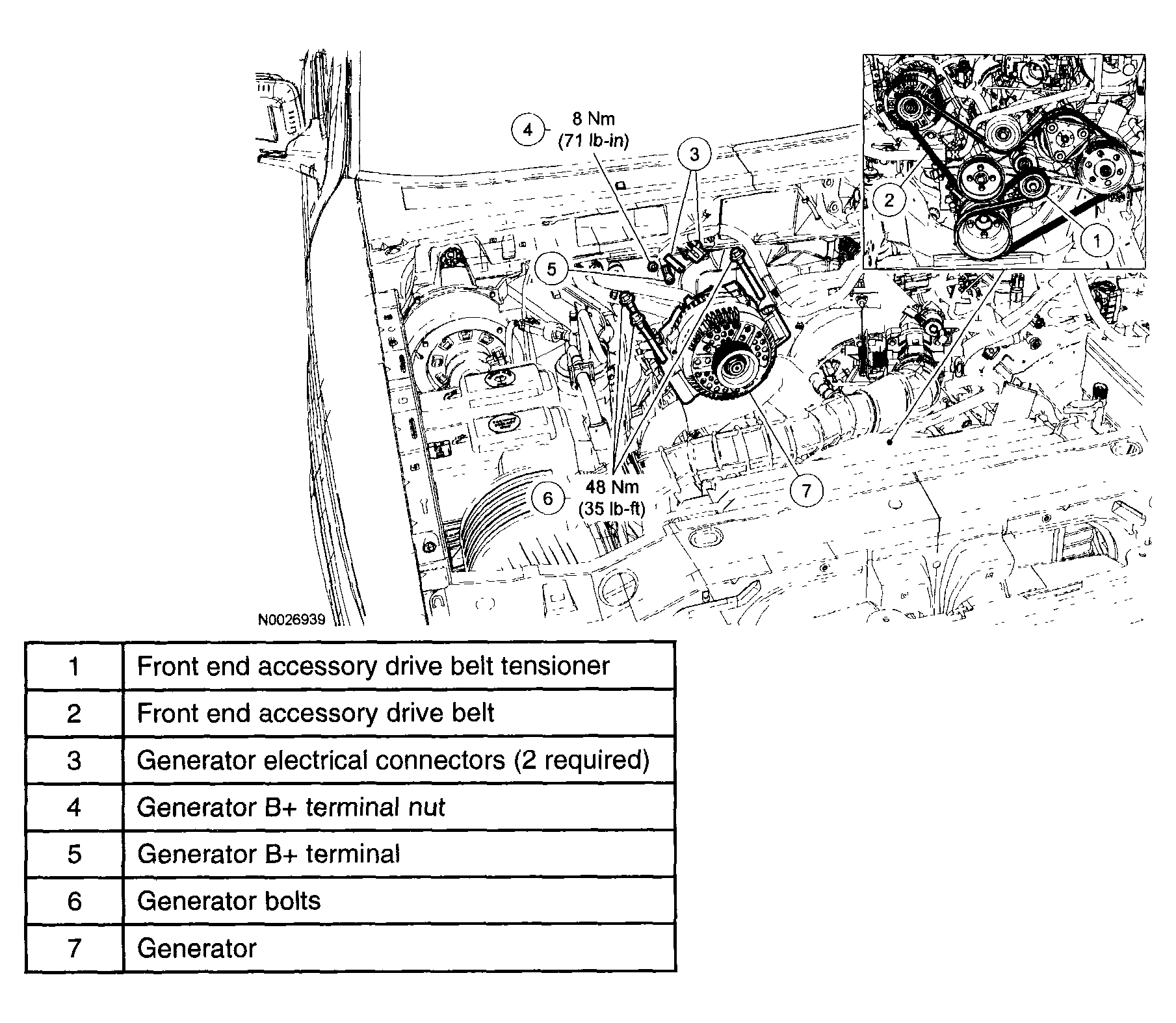

Fig 1: Generator - 3.0L With Torque Specifications
G04308284Courtesy of MAZDA MOTORS CORP.
