Home › Mazda › 2007 › B3000 Base, Automatic › Repair and Diagnosis › Electrical › Horns › Instrumentation/Driver Info › Instrument Cluster › Notes

Instrument Cluster: Notes

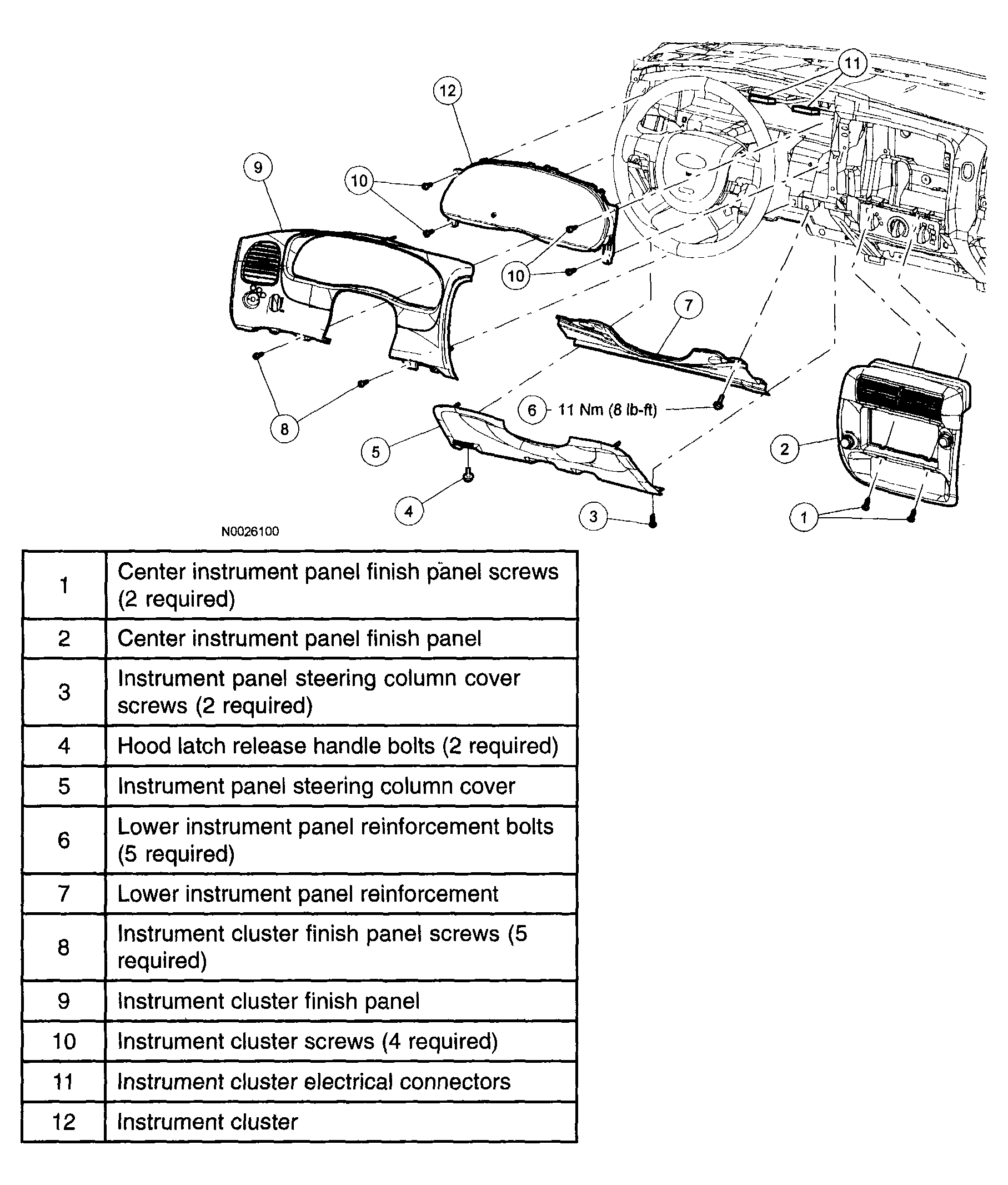

Fig 1: Exploded View Of Instrument Cluster With Torque Specifications
G04310565Courtesy of MAZDA MOTORS CORP.
