Starter Motor Removal / Installation - 2.3L
›
Notes
Starter Motor Removal / Installation - 2.3L: Notes

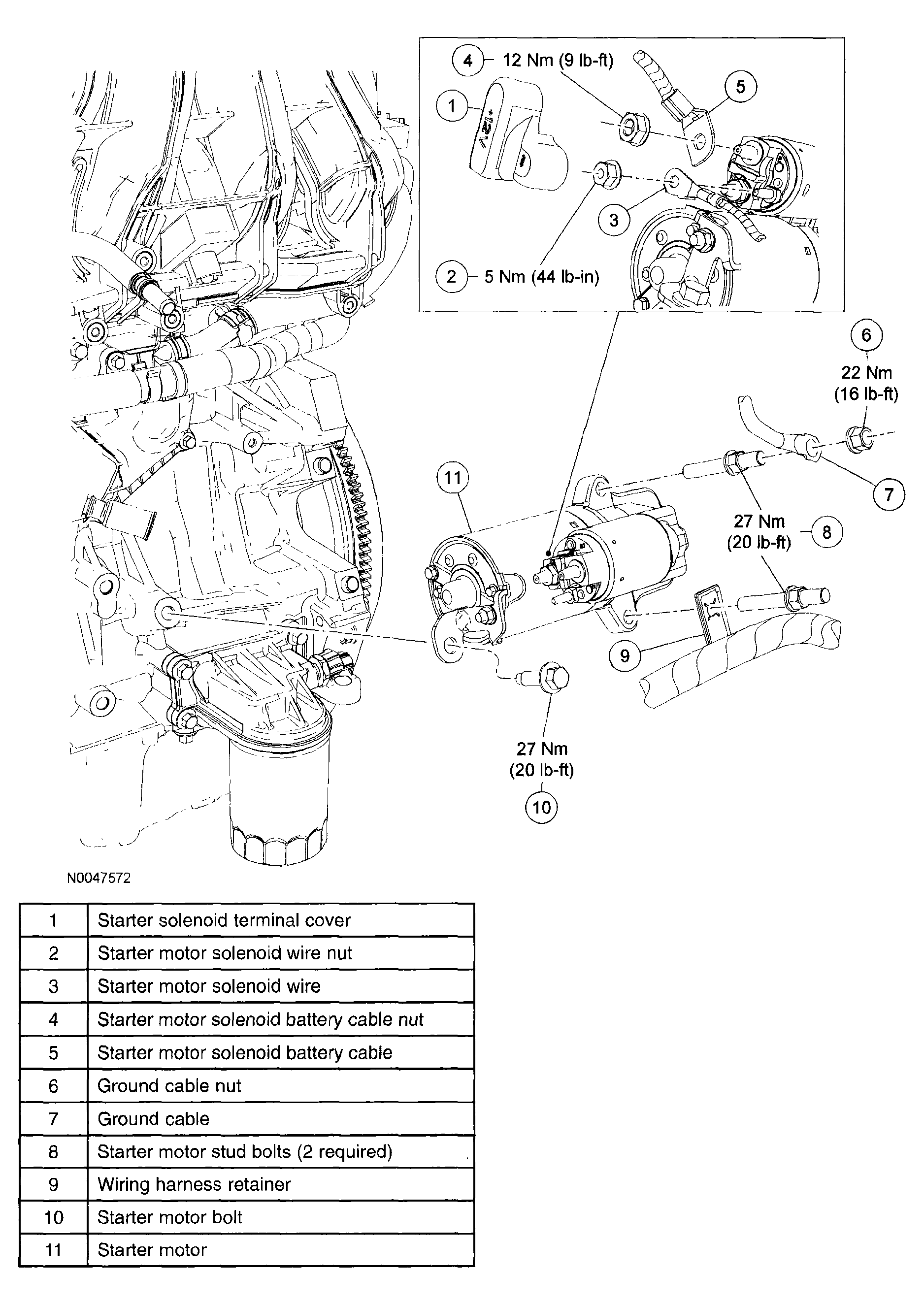

Fig 1: Starter Motor With Torque Specifications -- 2.3L
Courtesy of MAZDA MOTORS CORP.
