Crankshaft Position (CKP) Sensor Removal / Installation - 2.3L
›
Notes
Crankshaft Position (CKP) Sensor Removal / Installation - 2.3L: Notes

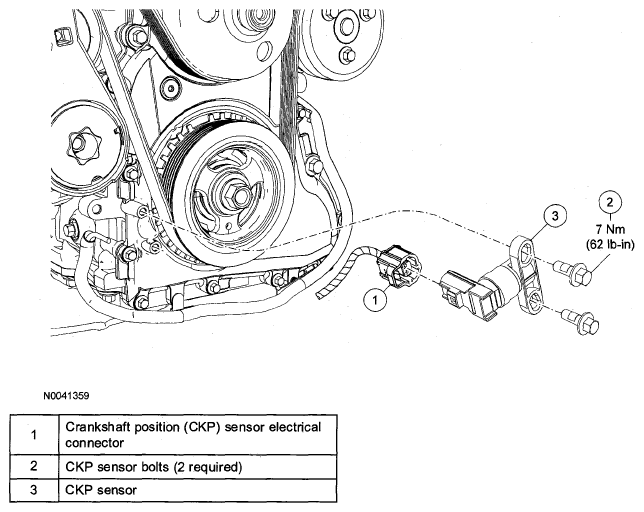

Fig 1: Crankshaft Position (CKP) Sensor Replacement Components With Torque Specifications - 2.3L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
