Heated Oxygen Sensor (Ho2S) Removal / Installation
›
2.3L Engine
2.3L Engine

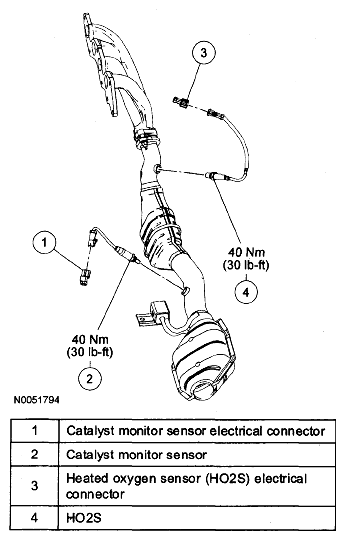

Fig 1: Heated Oxygen Sensor (HO2S) Replacement Components With Torque Specifications - 2.3L Engine
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
