Engine Front Cover Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Apply a 6 mm {0.24} dot of silicone sealant at the indicated location.

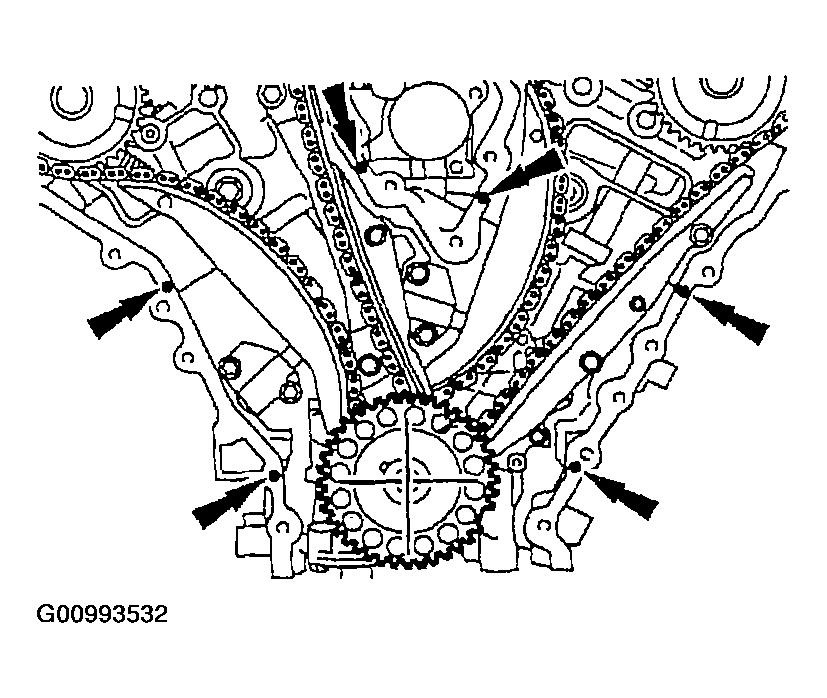

Fig 1: Locating Areas For Silicon Sealant Application
Courtesy of MAZDA MOTORS CORP.
Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.

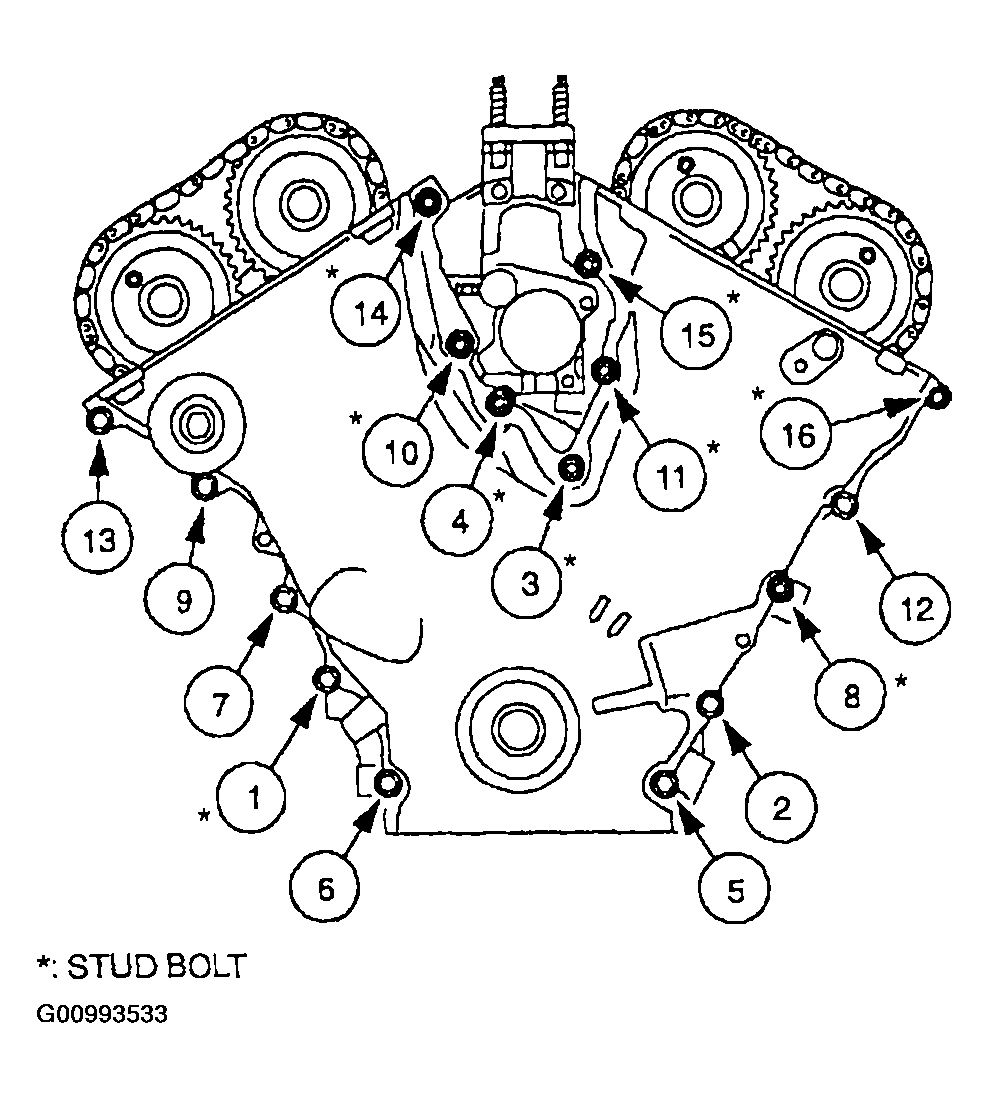

Fig 2: Engine Front Cover Bolt & Stud Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
