Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover bolt and studs in the order shown.

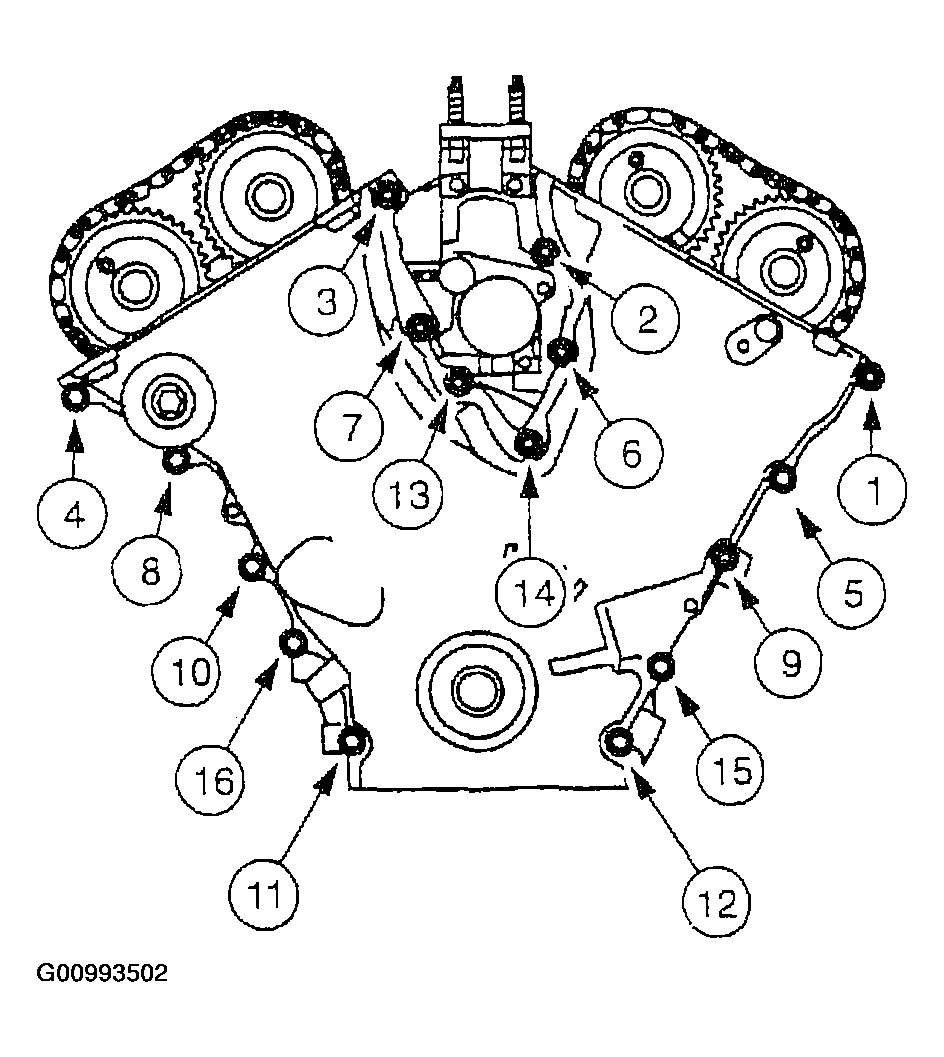

    Fig 1: Engine Front Cover Bolt & Stud Removal Sequence
    G00993502Courtesy of MAZDA MOTORS CORP.
