Windshield Washer Hose Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hood insulator.
Partially peel off the right side mud guard.
Remove in the order indicated in the table.

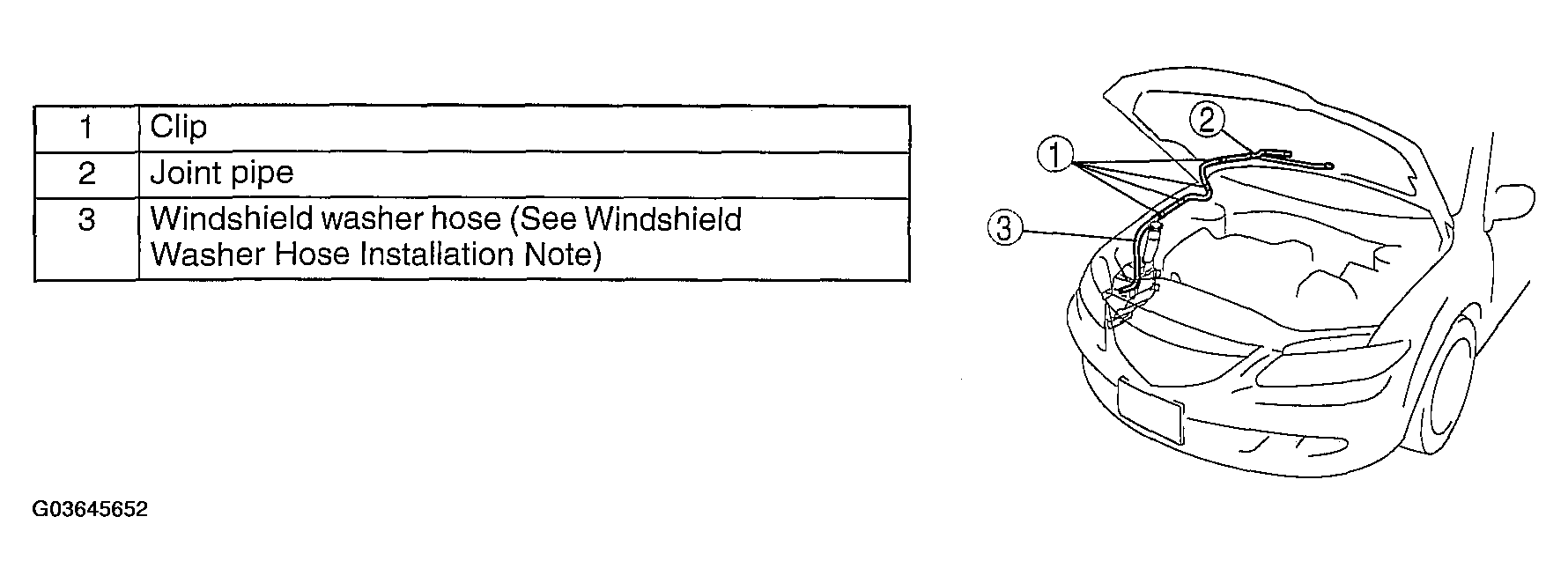

Fig 1: Windshield Washer Hose Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
