Power Brake Unit Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)

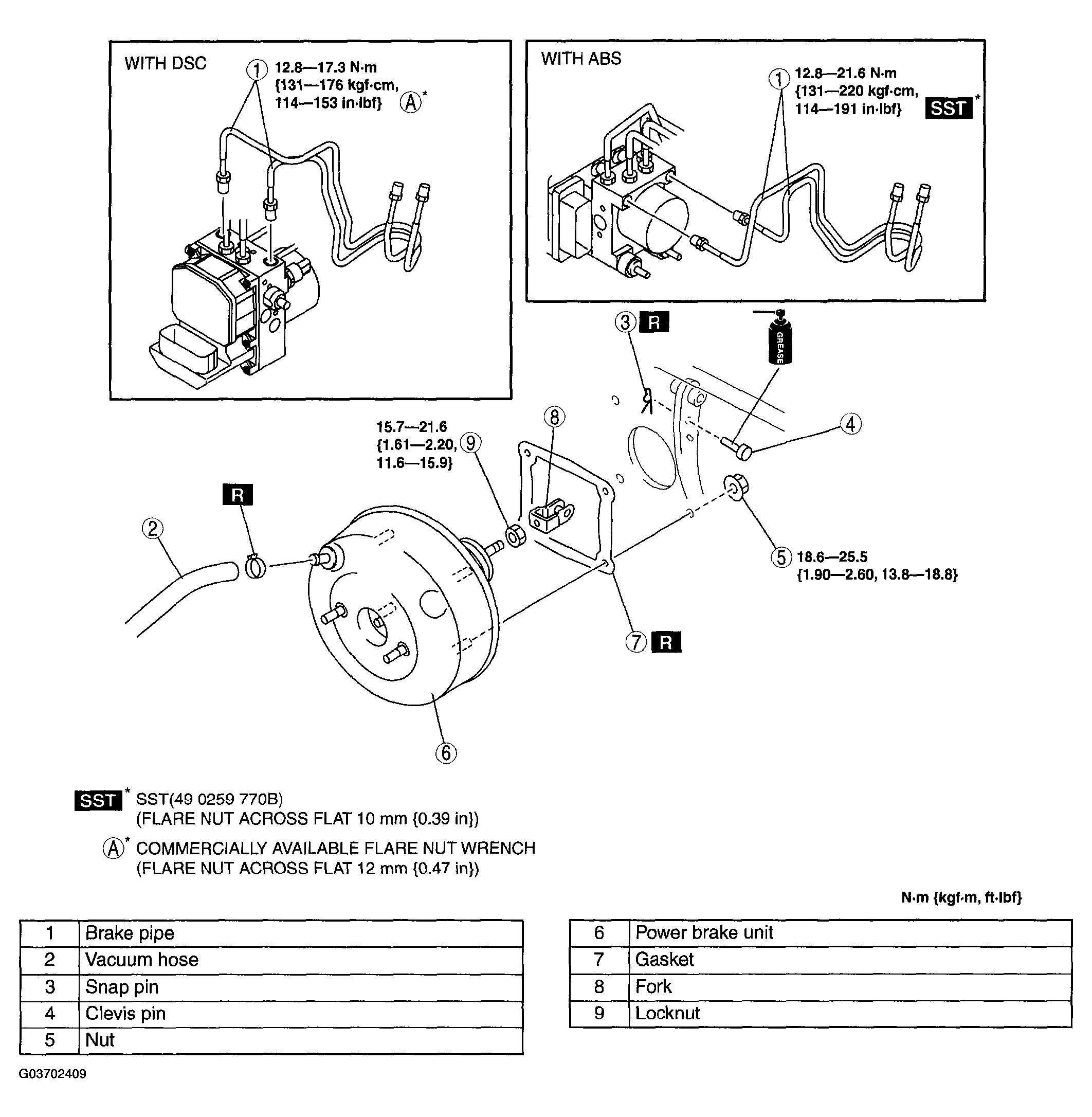

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, perform brake pedal inspection. (See BRAKE PEDAL INSPECTION .)
