Wheel Hub: Notes

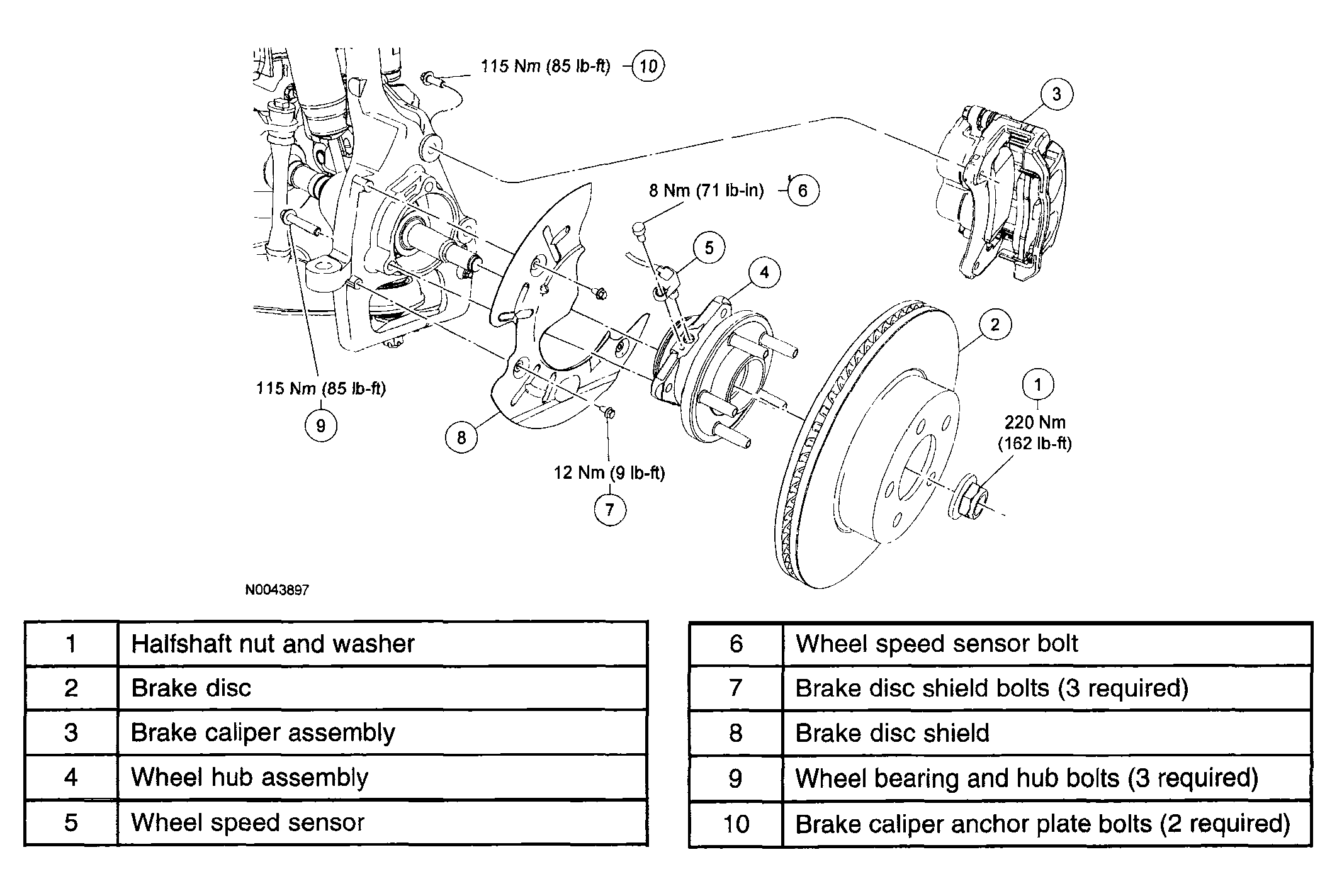

Fig 1: Exploded View Of Wheel Hub Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
