Wheel Spindle
›
Notes
Wheel Spindle: Notes

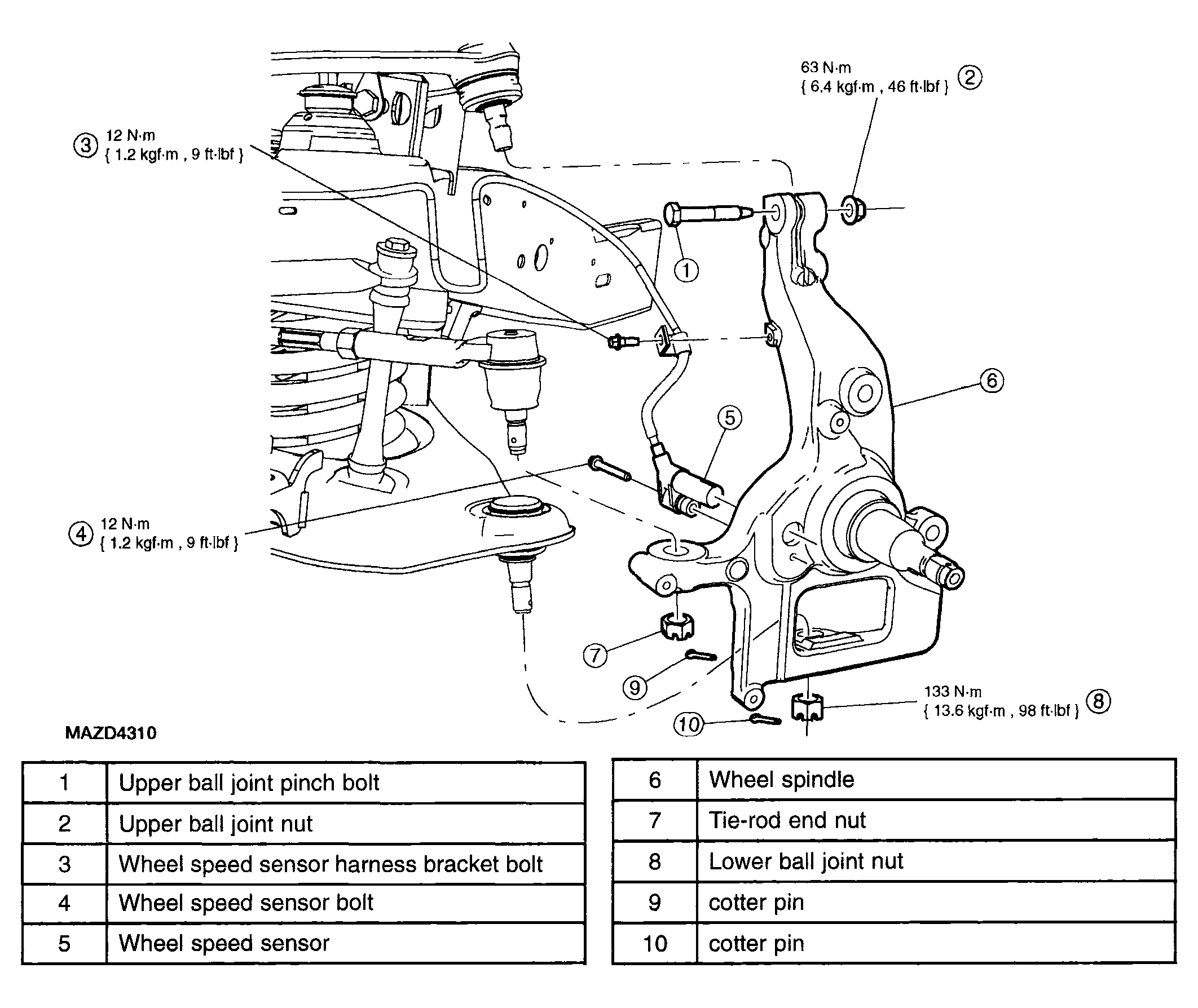

Fig 1: Wheel Spindle Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
