Shift Cable And Bracket Adjustment

1. Place the gearshift lever in the D position and hang a 1.4 kg (3 Ib) weight on the shift control selector lever.
- Move the selector lever to the first gear position, then move back two detents to the D position.
- Hang the 3.6 kg (8 Ib) weight on the gearshift lever.
Raise and support the vehicle. See LIFTING .

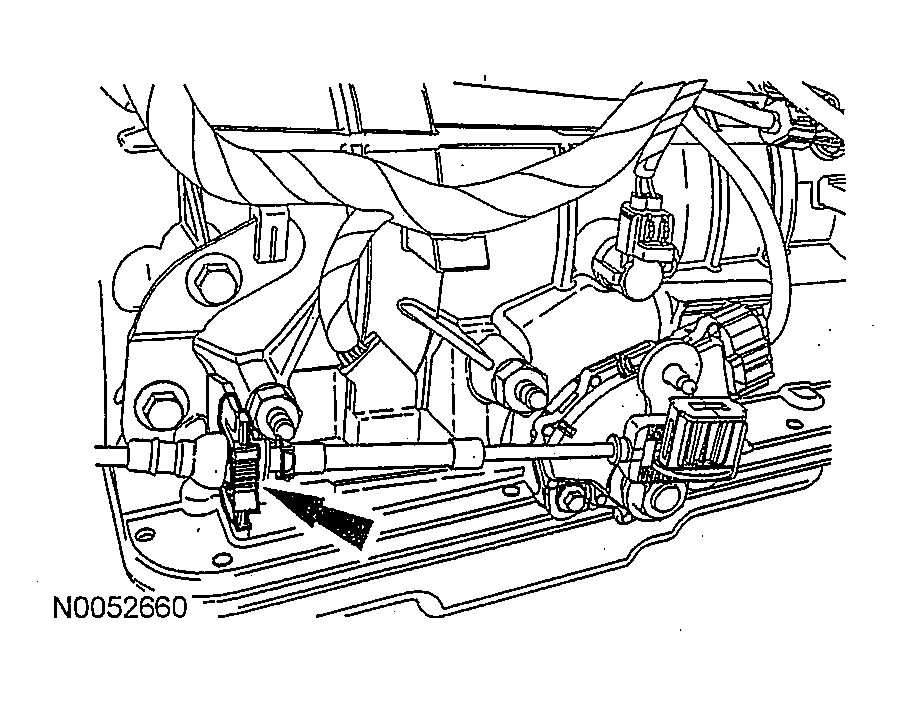

Fig 1: Disconnecting The Transmission Shift Cable
Courtesy of MAZDA MOTOR CORP.
Disconnect the transmission shift cable from the manual control lever.

Fig 2: Selector Lever Cable Clip
Courtesy of MAZDA MOTOR CORP.
Remove the selector lever cable clip and remove the cable from the bracket.

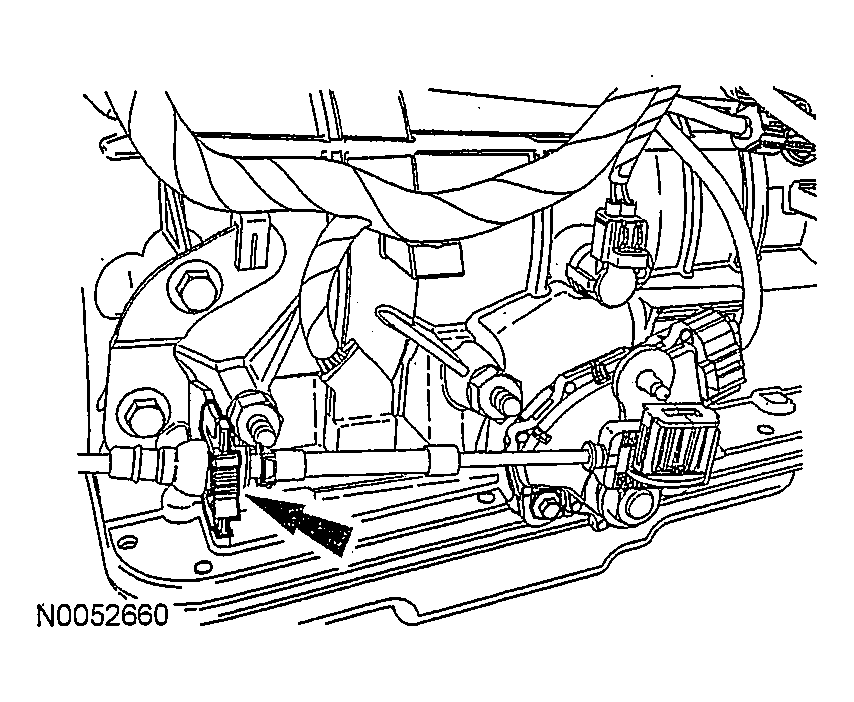

Fig 3: Placing The Manual Control Lever In The D Position
Courtesy of MAZDA MOTOR CORP.
Place the manual control lever in the D position.
1. Rotate the manual control lever fully counterclockwise.
2. Rotate the manual control lever clockwise to the D position (2 detents).

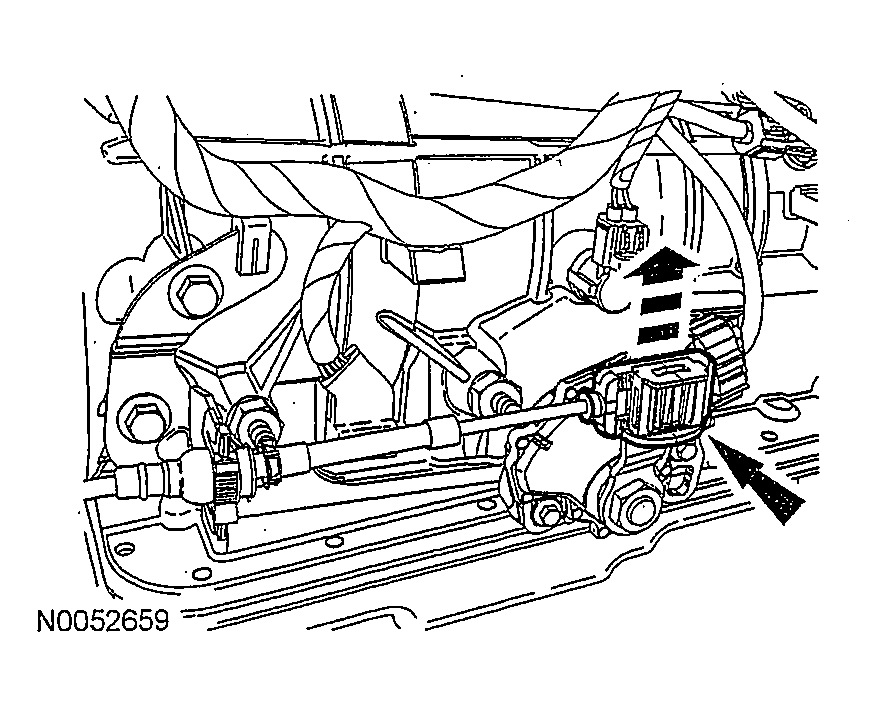

Fig 4: Selector Lever Cable Clip
Courtesy of MAZDA MOTOR CORP.
Install the selector lever cable into the bracket and install the clip.

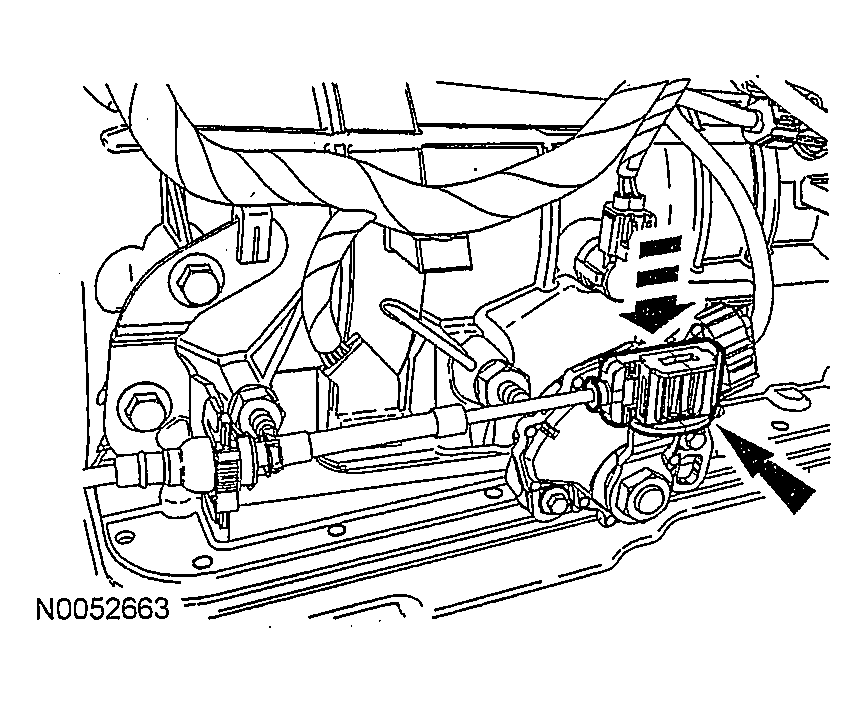

Fig 5: Connecting Selector Lever Cable
Connect the transmission selector lever cable to the manual control lever.
Lower the vehicle.
Remove the 1.4 kg (3 Ib) weight.
CAUTION:
- To prevent damage, do not adjust the transmission shift cable in any position other than D.
Verify that the vehicle starts in P or N and that backup lamps illuminate in R. If not, repeat steps 1 through 7 and perform a digital transmission range sensor adjustment. See DIGITAL TRANSMISSION RANGE SENSOR REMOVAL / INSTALLATION .
