Main Light Switch Inspection
- Remove the main light switch. See MAIN LIGHT SWITCH .
- Inspect for continuity between the main light switch terminals using an ohmmeter.

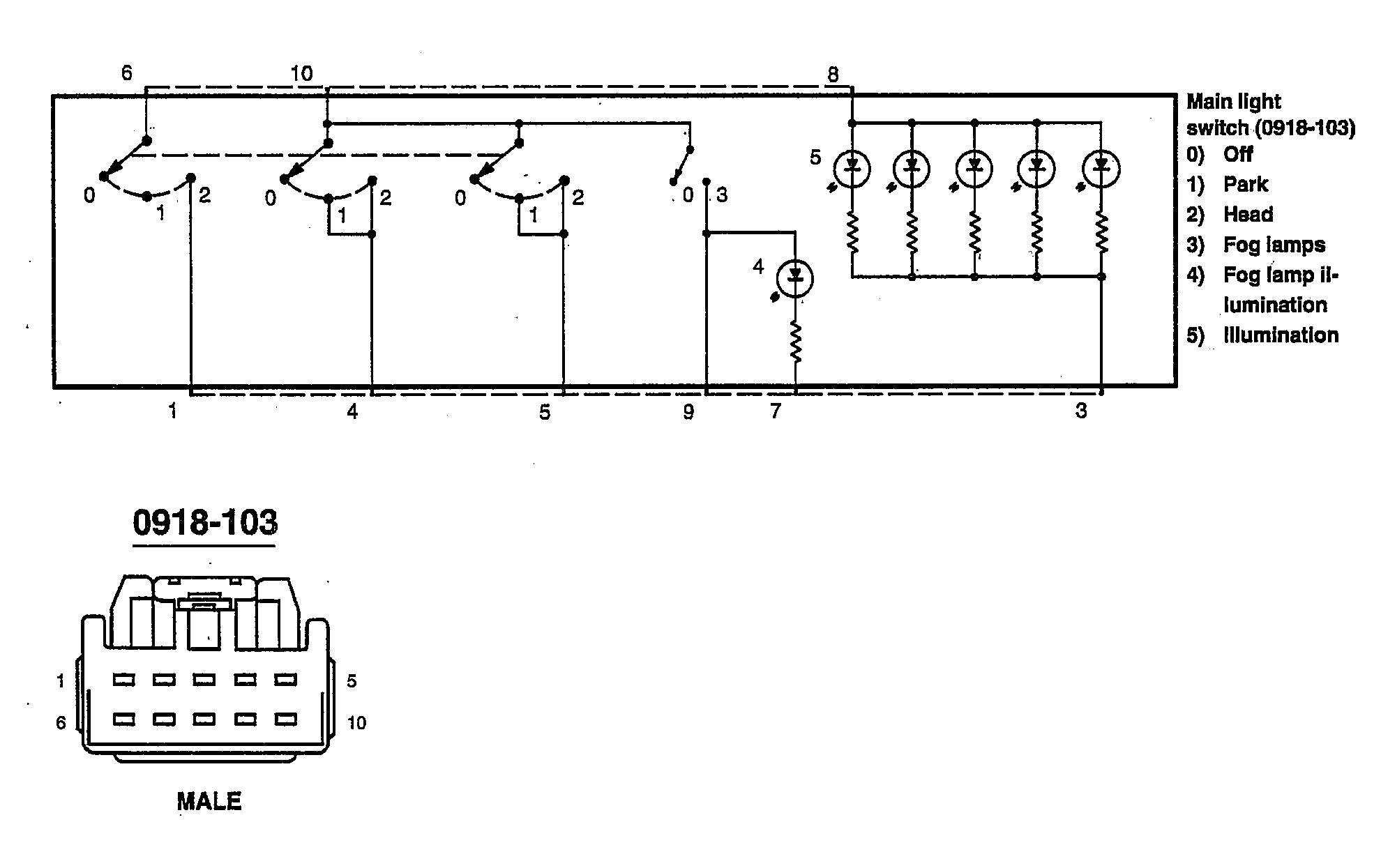

MAIN LIGHT SWITCH INSPECTION REFERENCE
| Circuit to test | Connect self-powered test light or ohmmeter to terminals | Move switch to these positions | A good switch will indicate |
|---|---|---|---|
| Headlamps | 1 and 6 | Off | Open circuit |
| Head | Closed circuit | ||
| Park | Open circuit | ||
| Park lamps | 5 and 10 | Off | Open circuit |
| Head | Closed circuit | ||
| Park | Closed circuit | ||
| Fog lamps | 9 and 10 | Off | Open circuit |
| Head | Closed circuit | ||
| Park | Closed circuit |
- If not as specified, replace the main light switch.
