Axle Retainer Bracket Front Removal / Installation

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
2. Remove the bushing through-bolt.

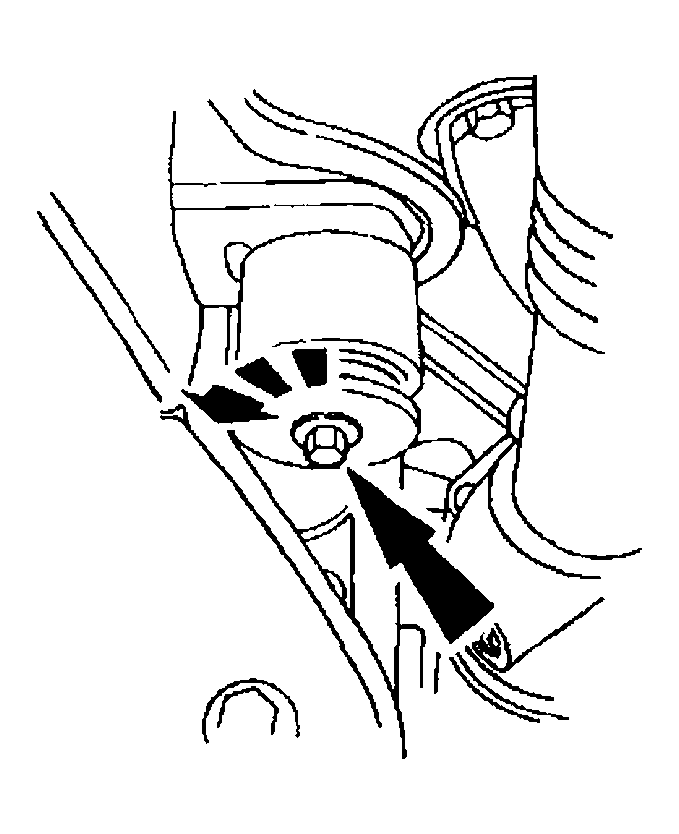

   Fig 1: Removing Bushing Through-Bolt

   Courtesy of MAZDA MOTORS CORP.
3. Remove the three retainer bracket bolts.

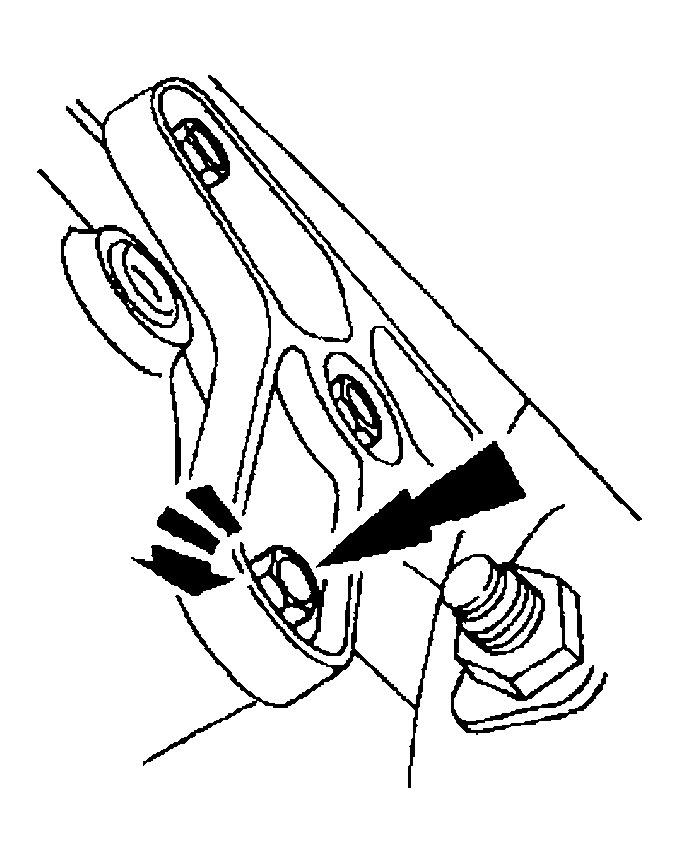

   Fig 2: Removing Retainer Bracket Bolts

   Courtesy of MAZDA MOTORS CORP.
4. To install, reverse the removal procedure.

Tightening torque: Retainer Bracket Bolts 64-91 Nm { 6.5-9.3 kgfm, 47-67 ft.lb. }

Tightening torque: Bushing Through Bolt 60-80 Nm { 6.1-8.2 kgfm, 45-59 ft.lb. }
