Installation Note

Verify that the splines on the pinion stem are free of burrs. If burrs are evident, remove them with a fine crocus cloth. Work in a rotating motion to wipe the pinion clean.
Lubricate the pinion flange splines.

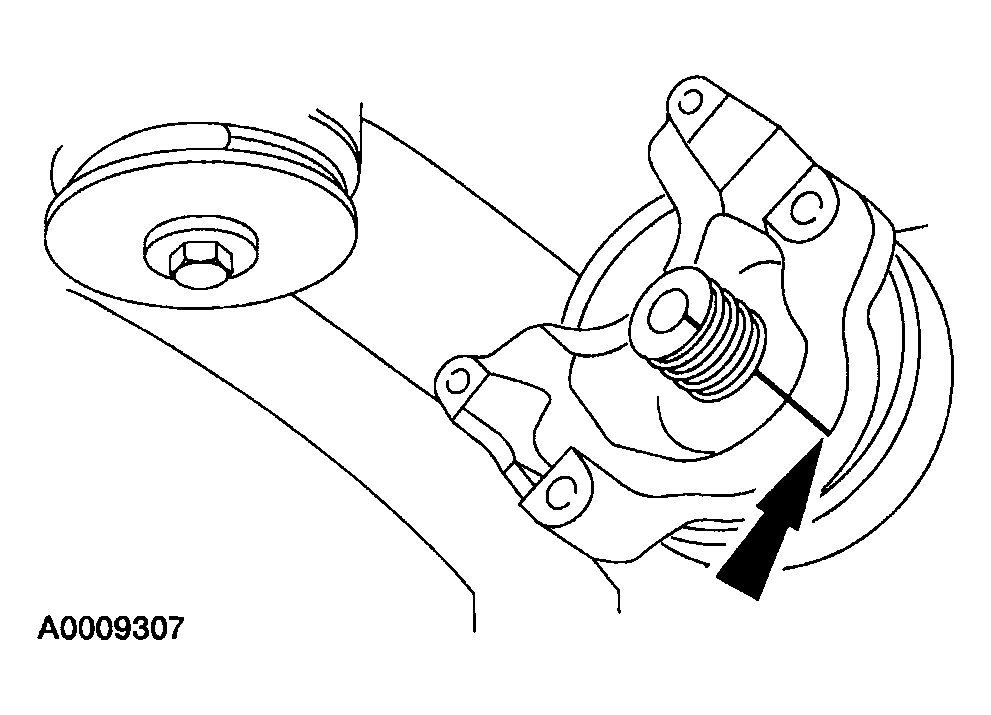

Fig 1: Aligning Index Marks
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Never use a metal hammer on the pinion flange or install the flange with power tools. If necessary, use a plastic hammer to tap on a tight fitting flange.
Align the index marks and install the pinion flange.

Fig 2: Installing Pinion Flange Nut
Courtesy of MAZDA MOTORS CORP.
Install the new nut hand-tight.

Fig 3: Holding Pinion Flange While Tightening Nut Using Special Tool (205-126)
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not loosen the nut to reduce preload. Install a new collapsible spacer and nut if preload reduction is necessary.
Use the pinion flange holding tool SST to hold the pinion flange while tightening the nut to set the preload.
1. Tighten the nut, rotating the pinion occasionally to ensure the differential pinion bearings are seating correctly. Take frequent differential pinion bearing preload readings by rotating the pinion with a Nm (inch-pound) torque wrench. The final reading must be 0.56 Nm (5 lb-in) more than the initial reading taken during step 4 removal.
Fig 4: Aligning Index Marks
Courtesy of MAZDA MOTORS CORP.
Align the index marks and position the front drive-shaft.

Fig 5: Installing Universal Joint Retainer Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the universal joint spider retainers and bolts.
Check the fluid level and, if necessary, fill the axle to specification with lubricant.
Lower the vehicle.
If so equipped, reactivate the air suspension.
