Pressure Relief Valve - 2.3L Removal / Installation

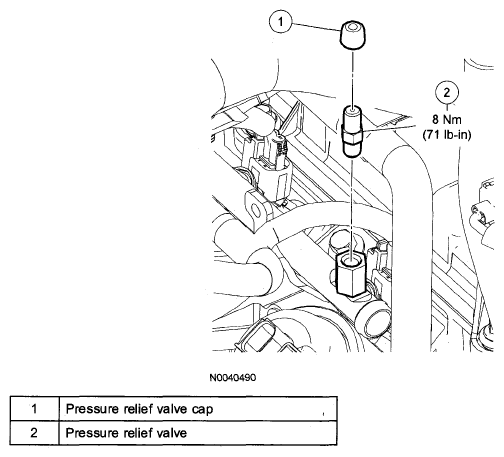

Fig 1: Pressure Relief Valve And Relief Valve Cap With Torque Specification

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
2. Remove the fuel pressure relief cap.
   Fig 2: Locating Fuel Pressure Relief Cap

   Courtesy of MAZDA MOTORS CORP.
3. Relieve the fuel pressure. See FUEL PRESSURE RELIEF , .
4. Remove the fuel pressure relief valve.
   Fig 3: Fuel Pressure Relief Valve With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
5. To install, reverse the removal procedure.
