Rear Seat Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

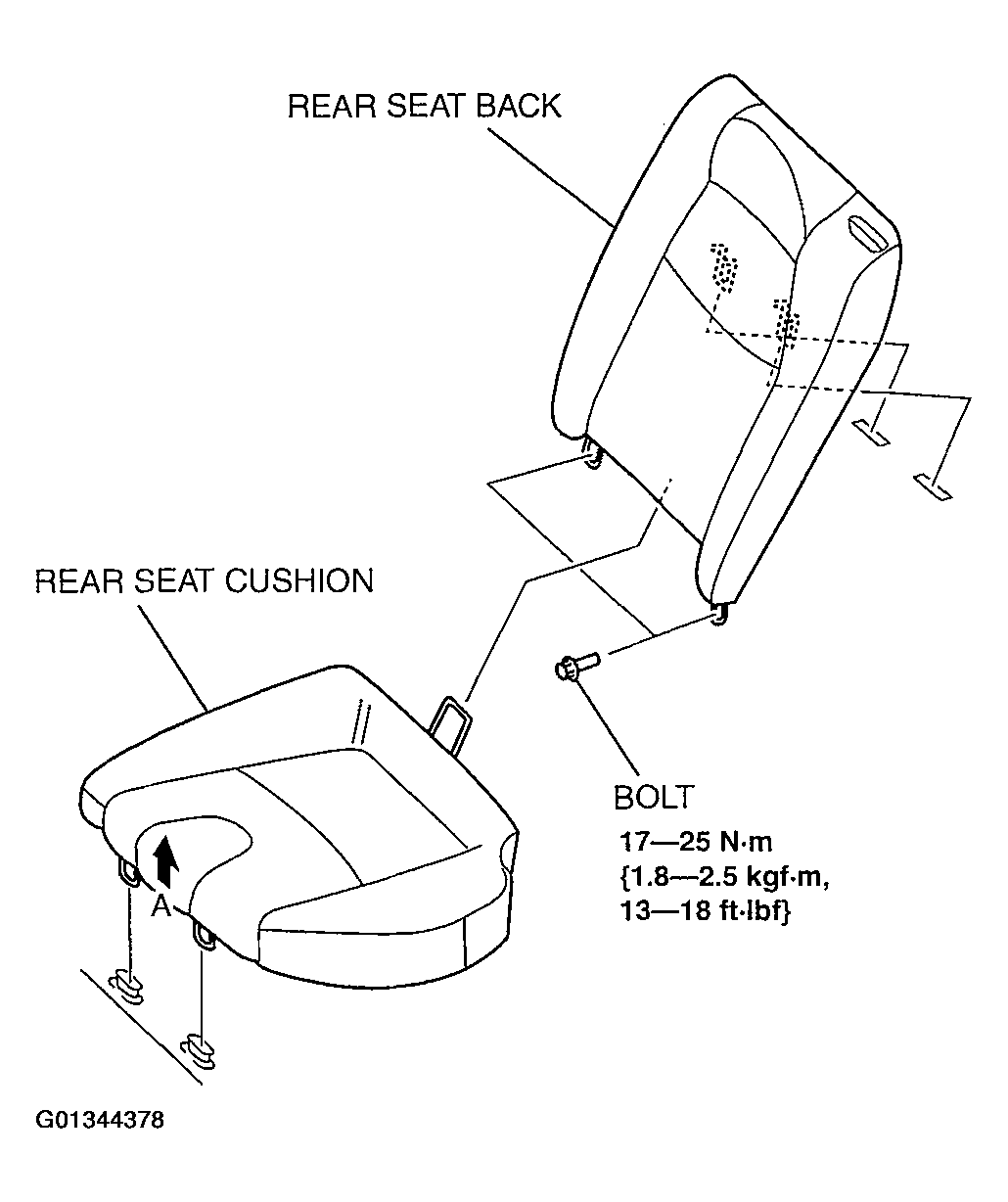

- Lift the point A in the direction of the arrow, then remove the rear seat cushion.
Courtesy of MAZDA MOTORS CORP.
- Remove the bolts, then remove the rear seat back.
- Install in the reverse order of removal.
