Audio Unit Connector End View (C290A)
Audio Unit Connector End View (C290A)

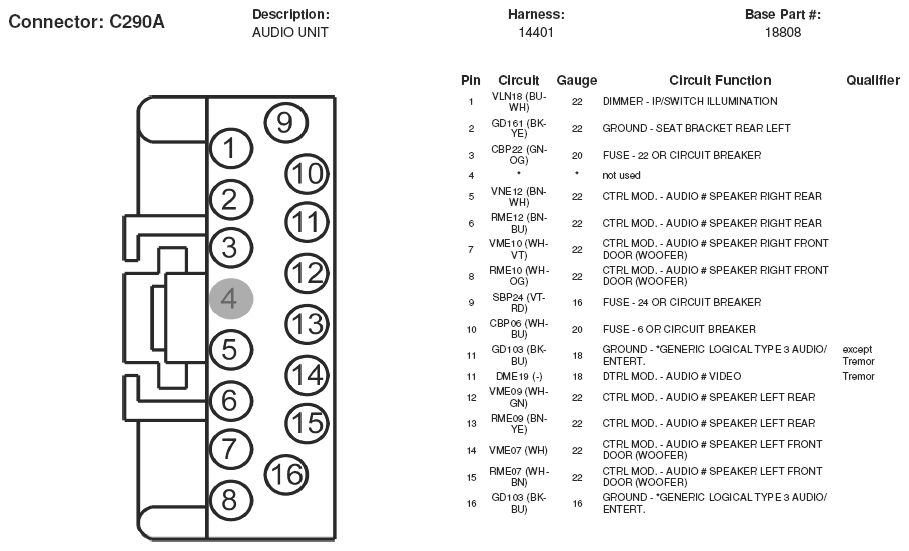

Fig 1: Audio Unit Connector End View (C290A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
