Audio Unit Connector End View (C290B)

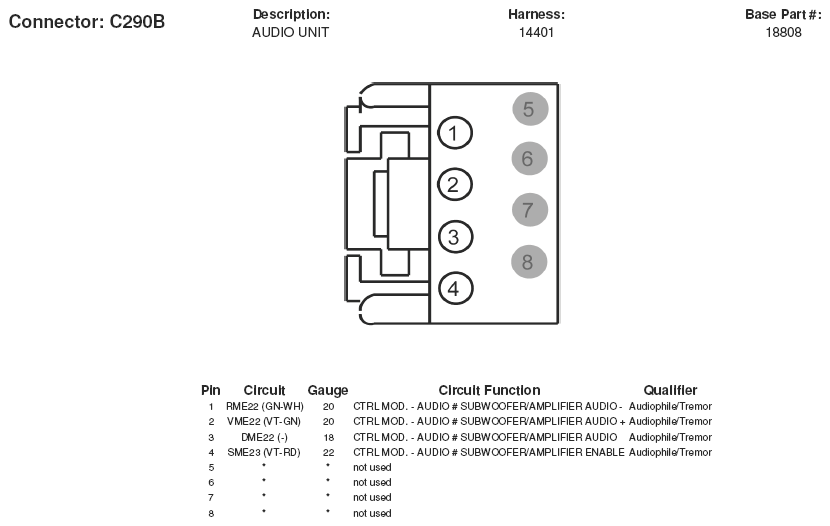

Fig 1: Audio Unit Connector End View (C290B)
G05169212Courtesy of FORD MOTOR CO.
