Audio Unit Connector End View (C290C)

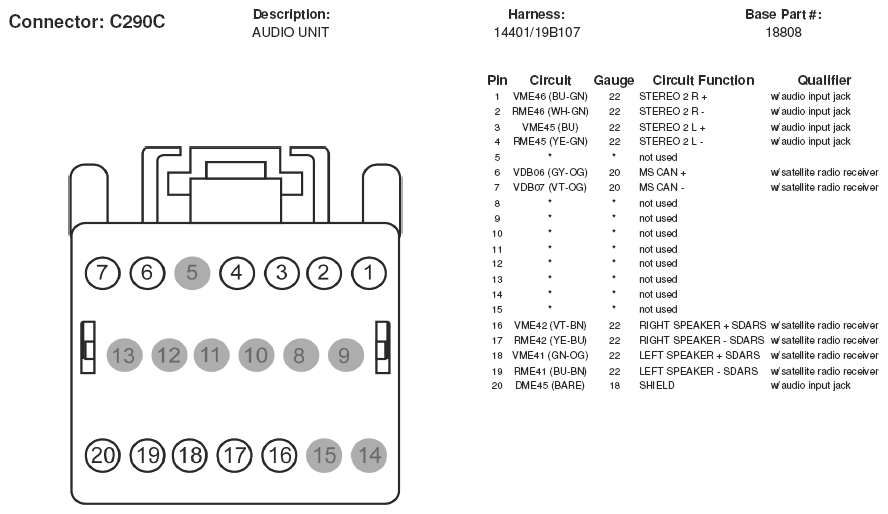

Fig 1: Audio Unit Connector End View (C290C)
G05169213Courtesy of FORD MOTOR CO.
