Brake Fluid Level Switch Connector End View (C124)

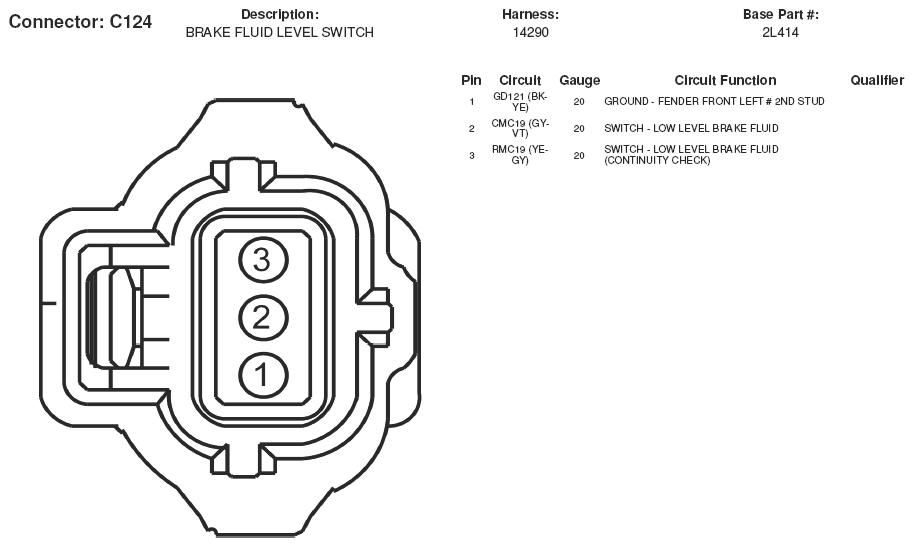

Fig 1: Brake Fluid Level Switch Connector End View (C124)
G05169146Courtesy of FORD MOTOR CO.
