Climate Control Assembly Connector End View (C294A)
Climate Control Assembly Connector End View (C294A)

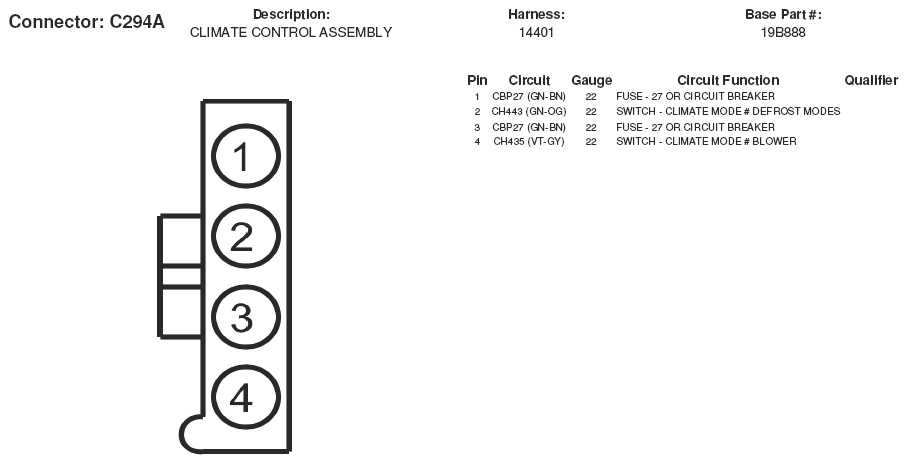

Fig 1: Climate Control Assembly Connector End View (C294A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
