Data Link Connector Connector End View (C251)

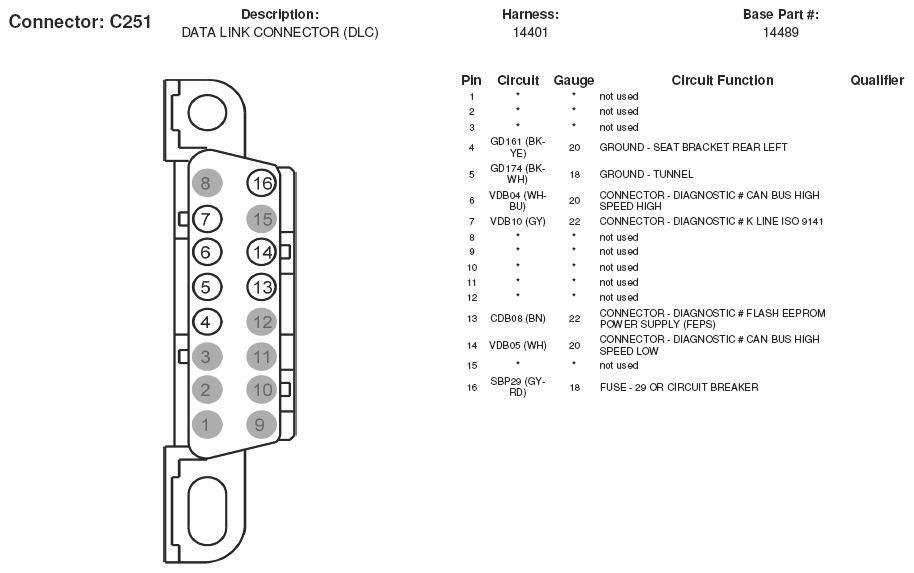

Fig 1: Data Link Connector Connector End View (C251)
G05169199Courtesy of FORD MOTOR CO.
