Generator Connector End View (C102B)
Generator Connector End View (C102B)

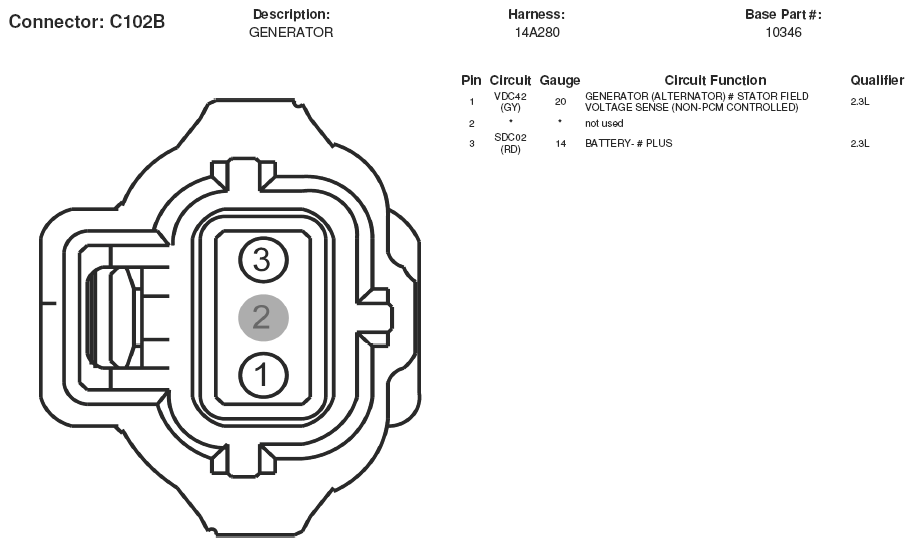

Fig 1: Generator Connector End View (C102B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
