Generator Connector End View (C102C)
Generator Connector End View (C102C)

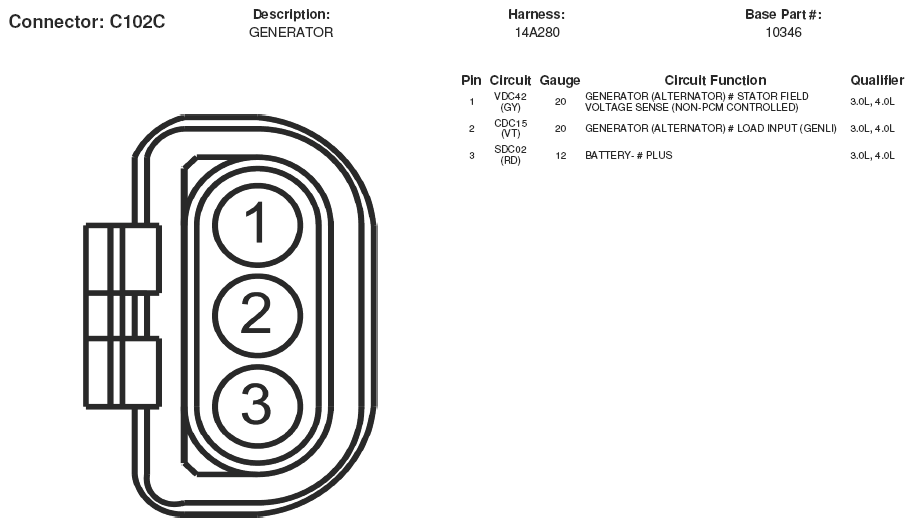

Fig 1: Generator Connector End View (C102C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
