Ignition Switch Connector End View (C250)

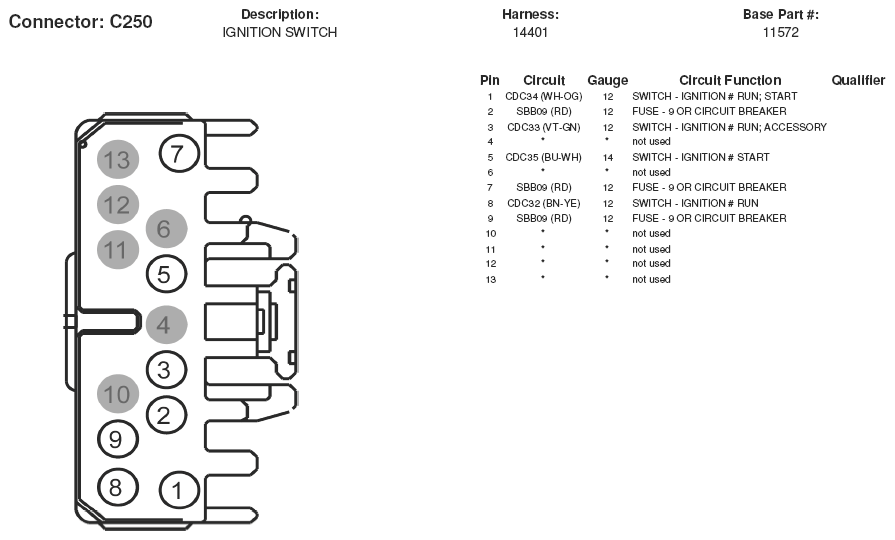

Fig 1: Ignition Switch Connector End View (C250)
G05169198Courtesy of FORD MOTOR CO.
