Inline Connector End View (C314)
Inline Connector End View (C314)

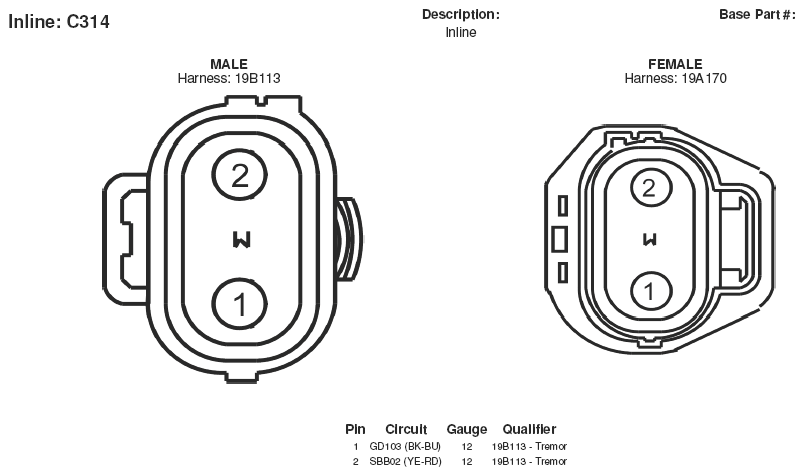

Fig 1: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
