Knock Sensor Connector End View (C108)
Knock Sensor Connector End View (C108)

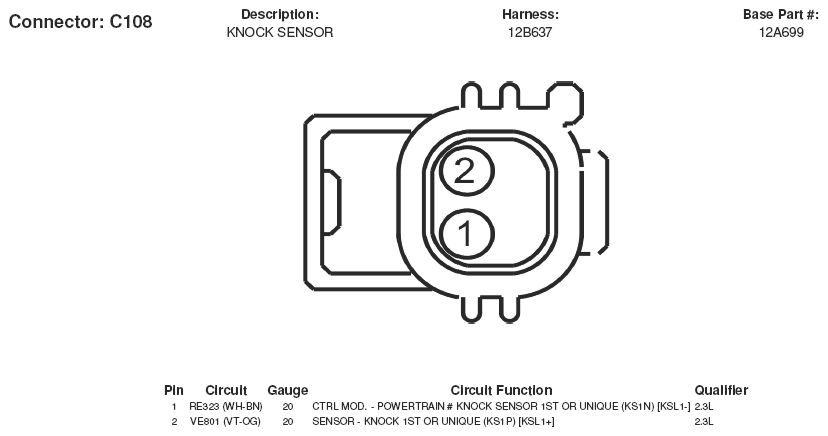

Fig 1: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
