Smart Junction Box Connector End View (C2280D)
Smart Junction Box Connector End View (C2280D)

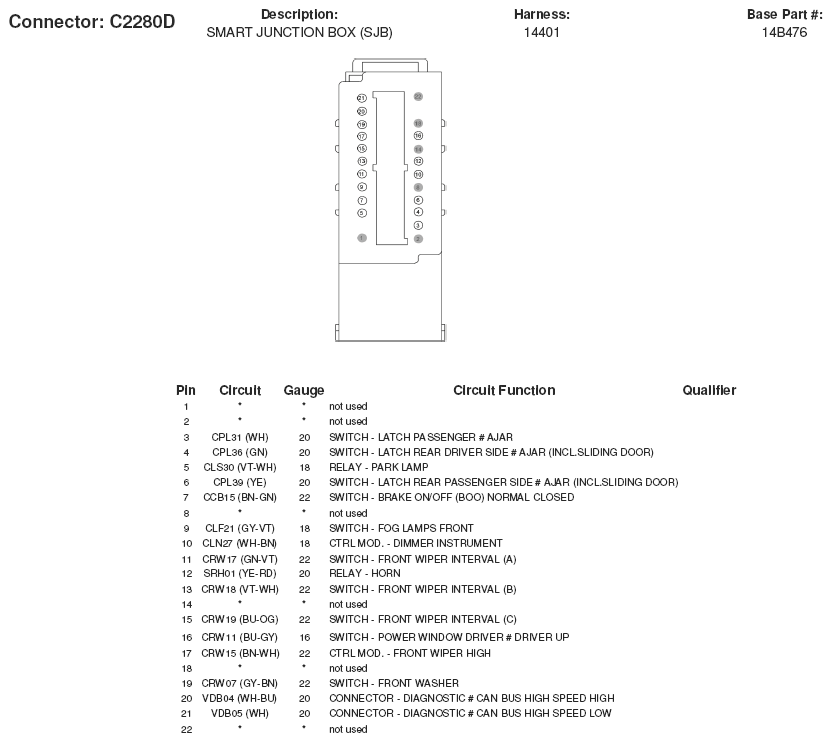

Fig 1: Smart Junction Box Connector End View (C2280D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
