Throttle Position Sensor Connector End View (C1189)

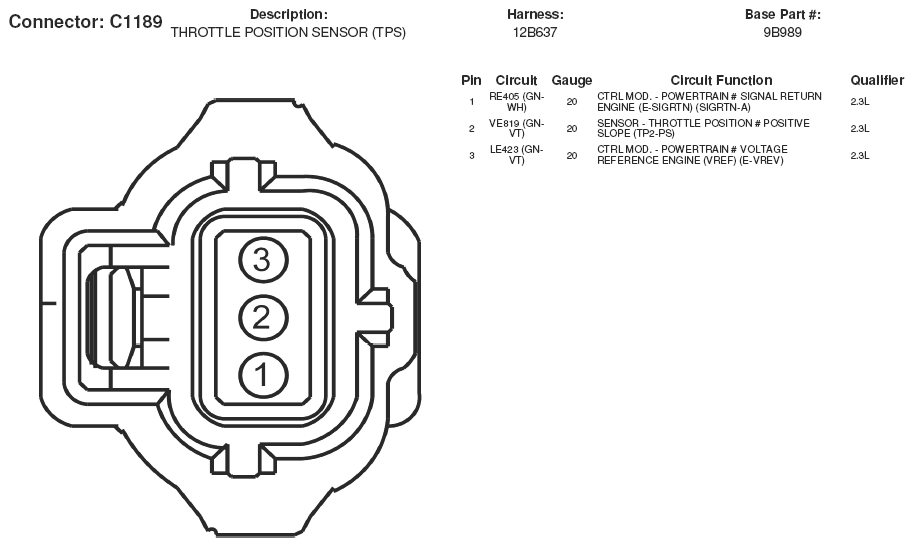

Fig 1: Throttle Position Sensor Connector End View (C1189)
G05169304Courtesy of FORD MOTOR CO.
