Throttle Position Sensor Connector End View (C189)

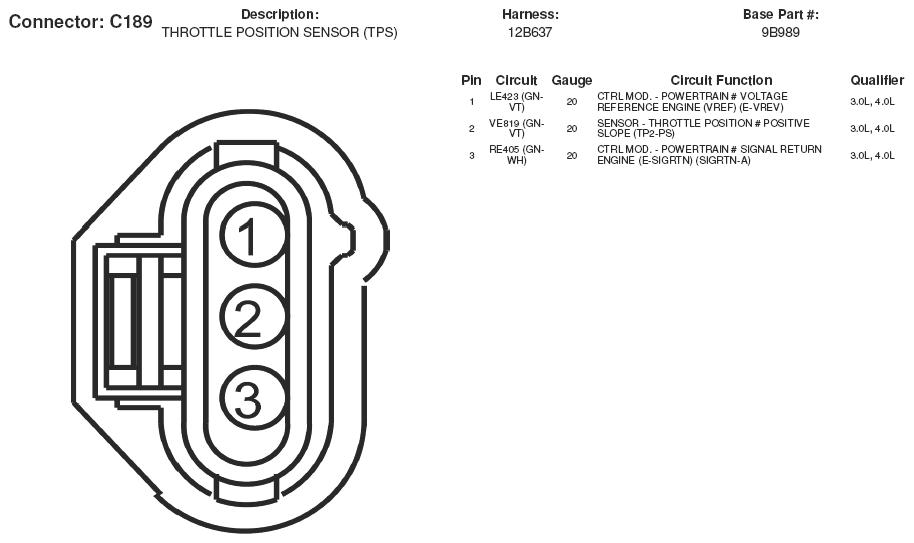

Fig 1: Throttle Position Sensor Connector End View (C189)
G05169171Courtesy of FORD MOTOR CO.
