Wheel Speed Sensor Connector End View (C150)
Wheel Speed Sensor Connector End View (C150)

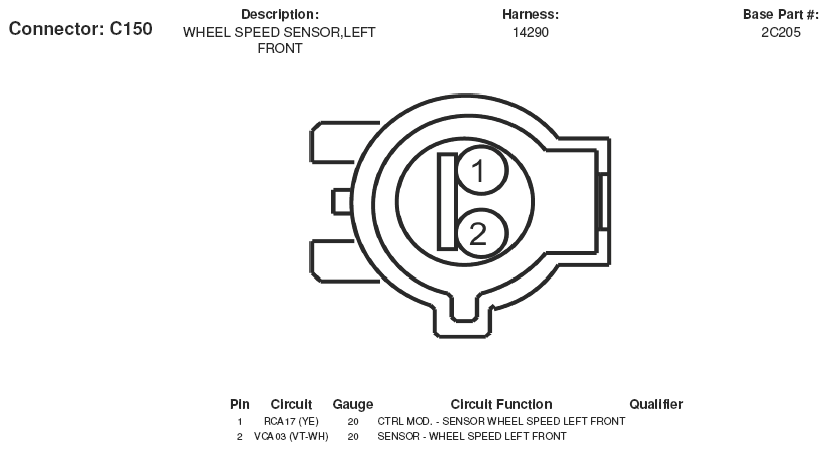

Fig 1: Wheel Speed Sensor Connector End View (C150)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
