Transfer Case Shift Motor Removal / Installation: Notes

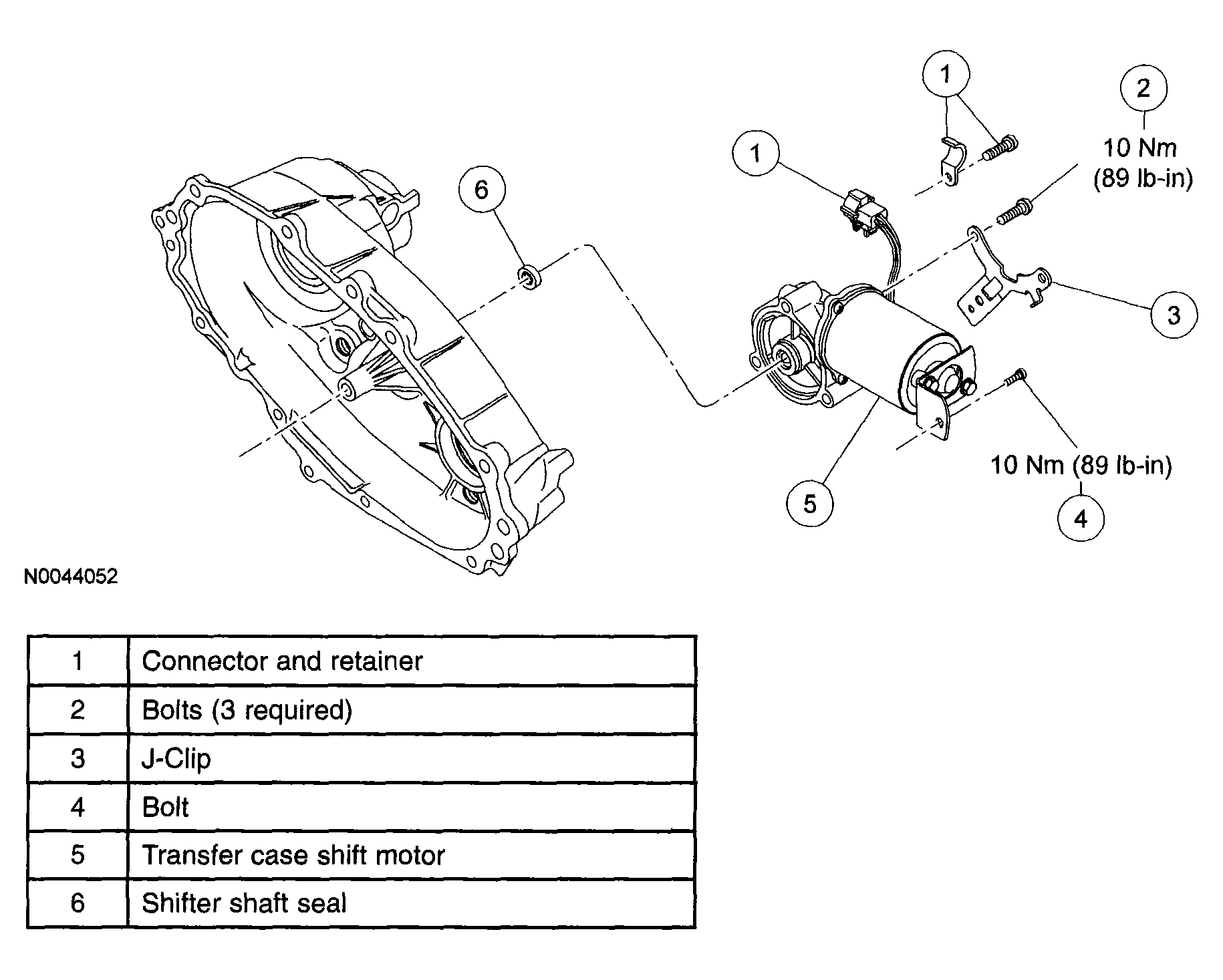

Fig 1: Removing/Installing Transfer Case Shift Motor With Torque Specifications
G04309044Courtesy of MAZDA MOTORS CORP.
